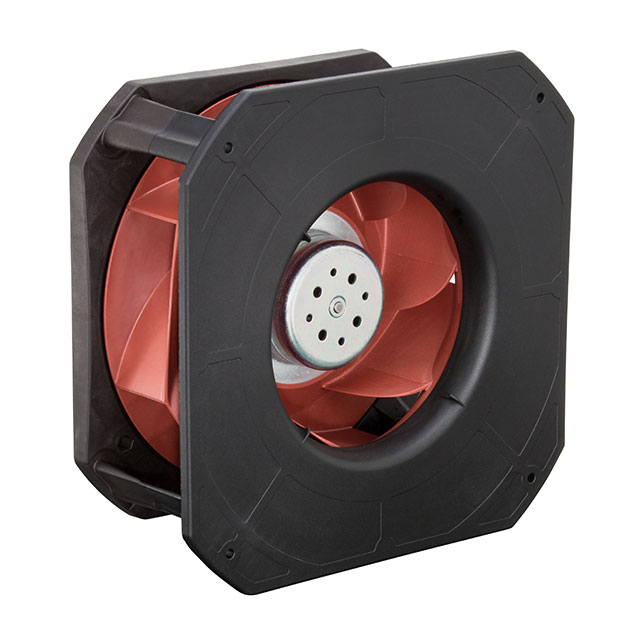

RG225-55/14/2TDMLO

Active

ebm-papst Inc.

FAN BLOWER CF 270X119.0MM 24VDC

Search across all available documentation for this part.

Active

ebm-papst Inc.

FAN BLOWER CF 270X119.0MM 24VDC

Technical Specifications

Parameters and characteristics for this part

Specification	RG225-55/14/2TDMLO

Air Flow	17.98 m³/min
Air Flow	642 CFM
Bearing Type	Ball
Fan Type	Blower, Centrifugal
Features	Speed Sensor (Tach), PWM Control
Ingress Protection	IP54 - Dust Protected, Water Resistant
Lifetime @ Temp.	52500 Hrs
Material - Blade	Plastic, Fiberglass Reinforced
Material - Frame	Plastic, Fiberglass Reinforced
Operating Temperature [Max]	65 °C
Operating Temperature [Max]	65 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	80 W
RPM	2500 RPM
Size / Dimension [x]	270 mm
Size / Dimension [z]	270 mm
Termination	4 Wire Leads
Voltage - Rated	24 VDC
Voltage Range [Max]	36 VDC
Voltage Range [Min]	16 VDC
Width [x]	119 mm

Part	Ingress Protection	Features	Size / Dimension [x]	Size / Dimension [z]	Bearing Type	Lifetime @ Temp.	Width [x]	Termination	Material - Frame	RPM	Material - Blade	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Voltage Range [Min]	Voltage Range [Max]	Power (Watts)	Fan Type	Air Flow	Air Flow	Voltage - Rated
ebm-papst Inc. RG225-55/14/2TDMLO	IP54 - Dust Protected Water Resistant	PWM Control Speed Sensor (Tach)	270 mm	270 mm	Ball	52500 Hrs	119 mm	4 Wire Leads	Plastic Fiberglass Reinforced	2500 RPM	Plastic Fiberglass Reinforced	-20 °C	-20 C	65 °C	65 °C	16 VDC	36 VDC	80 W	Blower Centrifugal	17.98 m³/min	642 CFM	24 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Blower, Centrifugal 24VDC Square - 270mm L x 270mm H Ball 642.0 CFM (17.98m³/min) 4 Wire Leads
