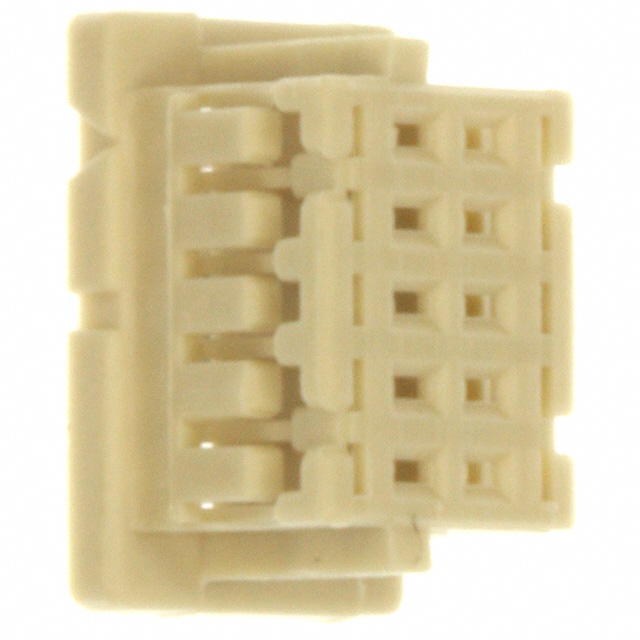

DF20A-10DS-1C
ActiveHirose Electric USA, Inc.
CONN HOUSING RCP 10 POS 1MM CRIMP ST CABLE MOUNT GRAY BAG
Deep-Dive with AI
Search across all available documentation for this part.
DF20A-10DS-1C
ActiveHirose Electric USA, Inc.
CONN HOUSING RCP 10 POS 1MM CRIMP ST CABLE MOUNT GRAY BAG
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DF20A-10DS-1C |
|---|---|
| Color | Beige |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Insulation Material | Polyamide (PA), Nylon |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -35 °C |
| Pitch [x] | 0.039 in |
| Pitch [x] | 1 mm |
| Row Spacing | 0.039 in |
| Row Spacing | 1 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.37 | |
| 10 | $ 0.28 | |||
| 25 | $ 0.25 | |||
| 50 | $ 0.23 | |||
| 100 | $ 0.22 | |||
| 250 | $ 0.20 | |||
| 500 | $ 0.18 | |||
| 1000 | $ 0.17 | |||
| 2500 | $ 0.15 | |||
Description
General part information
DF20A Series
10 Rectangular Connectors - Housings Receptacle Beige 0.039" (1.00mm)
