R4-40X5/8 2701

Active

APM HEXSEAL

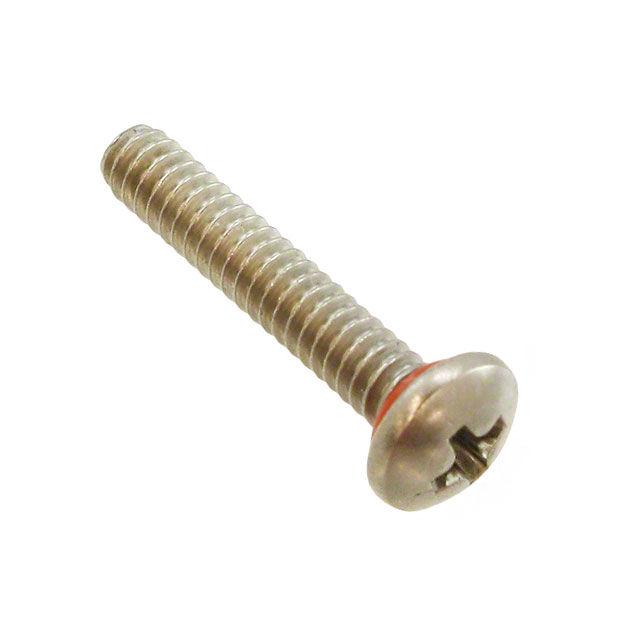

MACHINE SCREW PAN PHILLIPS 4-40

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

R4-40X5/8 2701

Active

APM HEXSEAL

MACHINE SCREW PAN PHILLIPS 4-40

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R4-40X5/8 2701

Drive Type	Phillips
Features	Self Sealing
Head Diameter [diameter]	6.05 mm
Head Diameter [diameter]	0.238 "
Head Height	2.03 mm
Head Height	0.08 in
Length - Below Head	0.625 in
Length - Below Head	15.88 mm
Length - Below Head	0.625 in
Length - Overall [x]	0.705 in
Length - Overall [x]	17.91 mm
Material	Stainless Steel
Screw Head Type	Pan Head
Thread Size	#4-40
Type	Machine Screw

R4-40 Series

Part	Length - Overall	Length - Overall [x]	Screw Head Type	Drive Type	Features	Length - Below Head	Length - Below Head	Length - Below Head	Thread Size	Type	Head Diameter [diameter]	Head Diameter [diameter]	Material	Head Height	Head Height	Length - Below Head	Length - Overall [x]	Length - Below Head [x]	Length - Below Head [x]	Length - Below Head [x]
APM HEXSEAL R4-40X3/4 2701	21.08 mm	0.83 in	Pan Head	Phillips	Self Sealing	0.75 "	19.05 mm	0.75 "	#4-40	Machine Screw	6.05 mm	0.238 "	Stainless Steel	2.03 mm	0.08 in
APM HEXSEAL R4-40X1/2 2701		0.58 in	Pan Head	Phillips	Self Sealing		12.7 mm	0.5 in	#4-40	Machine Screw	6.05 mm	0.238 "	Stainless Steel	2.03 mm	0.08 in	1/2	14.73 mm
APM HEXSEAL R4-40X5/8 2701		0.705 in	Pan Head	Phillips	Self Sealing	0.625 in	15.88 mm	0.625 in	#4-40	Machine Screw	6.05 mm	0.238 "	Stainless Steel	2.03 mm	0.08 in		17.91 mm
APM HEXSEAL R4-40X1 2701			Pan Head	Phillips	Self Sealing		25.4 mm	1 in	#4-40	Machine Screw	6.05 mm	0.238 "	Stainless Steel	2.03 mm	0.08 in
APM HEXSEAL R4-40X9/16 2701		0.643 in	Pan Head	Phillips	Self Sealing	0.5625 in	14.3 mm	0.563 in	#4-40	Machine Screw	6.05 mm	0.238 "	Stainless Steel	2.03 mm	0.08 in		16.33 mm
APM HEXSEAL R4-40X5/16 2701		0.393 in	Pan Head	Phillips	Self Sealing				#4-40	Machine Screw	6.05 mm	0.238 "	Stainless Steel	2.03 mm	0.08 in		9.98 mm	0.313 in	5 in	7.95 mm
APM HEXSEAL R4-40X7/16 2701		0.518 in	Pan Head	Phillips	Self Sealing		11.13 mm	0.438 "	#4-40	Machine Screw	6.05 mm	0.238 "	Stainless Steel	2.03 mm	0.08 in	7/16	13.16 mm
APM HEXSEAL R4-40X3/8-5701		0.455 in	Pan Head	Phillips	Self Sealing	9.53 mm	0.375 "	0.375 "	#4-40	Machine Screw	6.05 mm	0.238 "	Stainless Steel	2.03 mm	0.08 in		11.56 mm
APM HEXSEAL R4-40X1/4 2701		0.33 in	Pan Head	Phillips	Self Sealing	0.25 in	6.35 mm	0.25 in	#4-40	Machine Screw	6.05 mm	0.238 "	Stainless Steel	2.03 mm	0.08 in		8.38 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.78
		10	$ 0.56
		100	$ 0.44
		1000	$ 0.38
		5000	$ 0.30

Description

General part information

R4-40 Series

#4-40 Pan Head Machine Screw Phillips Drive Stainless Steel
