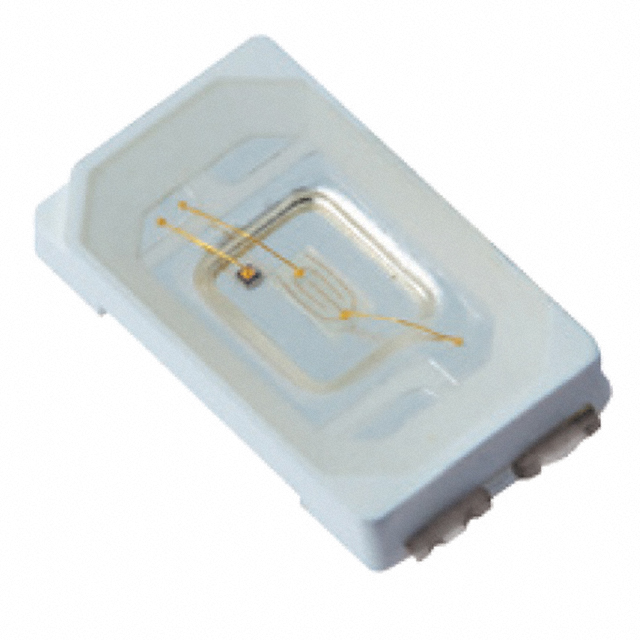

XZMYLA143S

Active

SunLED

150MA 590NM YELLOW 120° 2.7V SMD,5.3X3MM LED INDICATION - DISCRETE ROHS

Search across all available documentation for this part.

Active

SunLED

150MA 590NM YELLOW 120° 2.7V SMD,5.3X3MM LED INDICATION - DISCRETE ROHS

Technical Specifications

Parameters and characteristics for this part

Specification	XZMYLA143S

Color	Yellow
Current - Test	150 mA
Height - Seated (Max) [Max]	1.02 mm
Height - Seated (Max) [Max] [z]	0.04 "
Lumens/Watt @ Current - Test	37 lm/W
Mounting Type	Surface Mount
Package / Case	Nonstandard SMD
Size / Dimension [x]	5.3 mm
Size / Dimension [x]	0.209 "
Size / Dimension [y]	0.118 in
Size / Dimension [y]	3 mm
Supplier Device Package	SMD
Thermal Resistance of Package	70 °C/W
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	2.7 V
Wavelength	590 nm

Part	Package / Case	Voltage - Forward (Vf) (Typ)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Viewing Angle	Color	Supplier Device Package	Mounting Type	Current - Test	Wavelength	Lumens/Watt @ Current - Test	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Thermal Resistance of Package
SunLED XZMYLA143S	Nonstandard SMD	2.7 V	0.04 "	1.02 mm	120 °	Yellow	SMD	Surface Mount	150 mA	590 nm	37 lm/W	0.118 in	5.3 mm	0.209 "	3 mm	70 °C/W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting Color - Yellow 590nm (Typ) Nonstandard SMD
