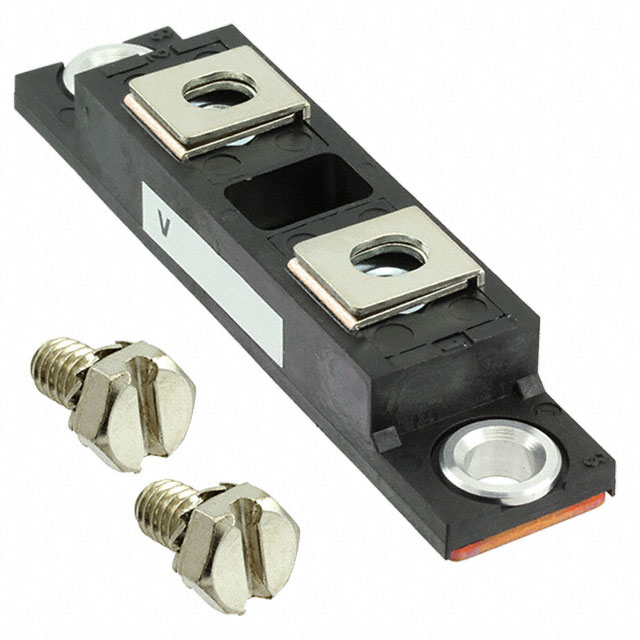

VS-VSUD405CW60

Active

Vishay General Semiconductor - Diodes Division

DIODE MOD GP 600V 480A TO244AB

Search across all available documentation for this part.

Active

Vishay General Semiconductor - Diodes Division

DIODE MOD GP 600V 480A TO244AB

Technical Specifications

Parameters and characteristics for this part

Specification	VS-VSUD405CW60

Current - Average Rectified (Io) (per Diode)	480 A
Current - Reverse Leakage @ Vr	3 mA
Diode Configuration	1 Pair Common Cathode
Mounting Type	Chassis Mount
Operating Temperature - Junction [Max]	175 ░C
Operating Temperature - Junction [Min]	-40 °C
Package / Case	TO-244AB
Reverse Recovery Time (trr)	124 ns
Speed	200 mA, 500 ns
Supplier Device Package	TO-244AB
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	600 V
Voltage - Forward (Vf) (Max) @ If	1.72 V

Part	Voltage - DC Reverse (Vr) (Max) [Max]	Reverse Recovery Time (trr)	Supplier Device Package	Diode Configuration	Speed	Package / Case	Current - Reverse Leakage @ Vr	Technology	Mounting Type	Voltage - Forward (Vf) (Max) @ If	Operating Temperature - Junction [Min]	Operating Temperature - Junction [Max]	Current - Average Rectified (Io) (per Diode)
Vishay General Semiconductor - Diodes Division VS-VSUD405CW60	600 V	124 ns	TO-244AB	1 Pair Common Cathode	200 mA 500 ns	TO-244AB	3 mA	Standard	Chassis Mount	1.72 V	-40 °C	175 ░C	480 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	10	$ 37.86

General part information

Diode Array 1 Pair Common Cathode 600 V 480A Chassis Mount TO-244AB
