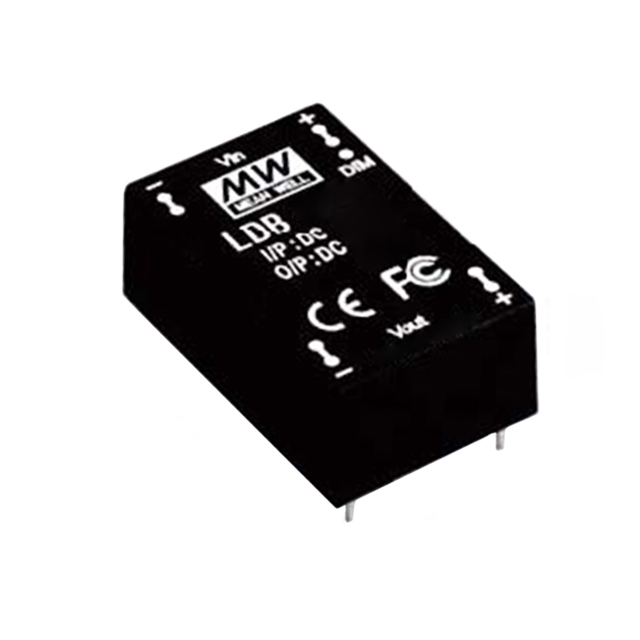

LDB-300L
ActiveMEAN WELL USA Inc.
LED DVR CC BUCK-BST 2-40V 300MA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LDB-300L
ActiveMEAN WELL USA Inc.
LED DVR CC BUCK-BST 2-40V 300MA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LDB-300L |
|---|---|
| Approval Agency | CE |
| Current - Output (Max) [Max] | 300 mA |
| Dimming | PWM |
| Efficiency | 90 % |
| Features | Remote On/Off, SCP, OTP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 71 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 9 PC Pad |
| Package / Case | 24-DIP Module |
| Size / Dimension [x] | 1.25 " |
| Size / Dimension [x] | 31.8 mm |
| Size / Dimension [y] | 20.3 mm |
| Size / Dimension [y] | 0.8 in |
| Size / Dimension [z] | 0.48 in |
| Size / Dimension [z] | 12.2 mm |
| Topology | Buck-Boost |
| Type | Constant Current |
| Voltage - Input (Max) [Max] | 36 V |
| Voltage - Input (Min) [Min] | 9 V |
| Voltage - Output [Max] | 40 V |
| Voltage - Output [Min] | 2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 10.41 | |
| 5 | $ 9.65 | |||
| 10 | $ 9.34 | |||
Description
General part information
LDB-300 Series
300mA 2 ~ 40V Constant Current LED Driver Buck-Boost Topology 1 Output
