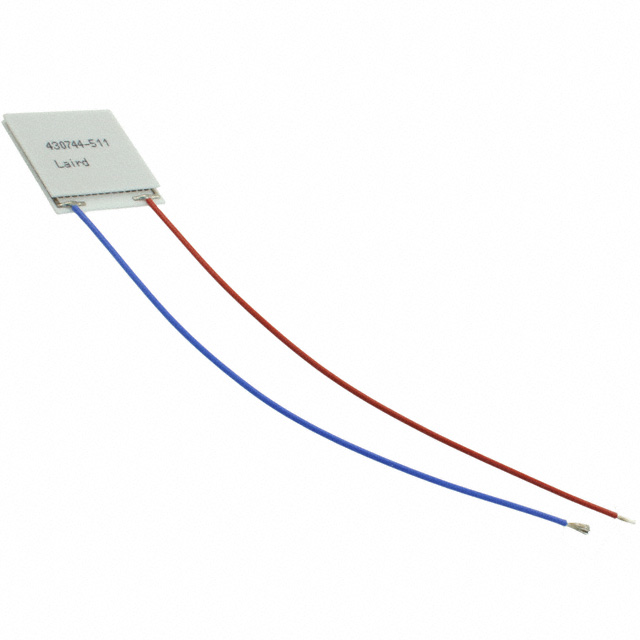

430744-511

Laird Thermal Systems, Inc.

PELTIER MOD UT8,12,F2,3030,TA,W6

Search across all available documentation for this part.

Laird Thermal Systems, Inc.

PELTIER MOD UT8,12,F2,3030,TA,W6

Technical Specifications

Parameters and characteristics for this part

Part	Resistance	Operating Temperature	Voltage - Max [Max]	Number of Stages	Size / Dimension [y]	Size / Dimension [x]	Features	Delta Tmax @ Th	Height [z]	Qmax @ Th	Current - Max [Max]
Laird Thermal Systems, Inc. 430744-512	1.67 Ohms	80 °C	14.5 V	1	30 mm	34 mm	Lead Wires Sealed - Silicone RTV	67 °C	2.57 mm	69 W	8 A
Laird Thermal Systems, Inc. 430744-513	1.67 Ohms	80 °C	14.5 V	1	30 mm	34 mm	Lead Wires Sealed - Epoxy	67 °C	2.56 mm	69 W	8 A
Laird Thermal Systems, Inc. 430744-511	1.67 Ohms	80 °C	14.5 V	1	30 mm	34 mm	Lead Wires Non-Sealed	67 °C	2.56 mm	69 W	8 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 32.81
