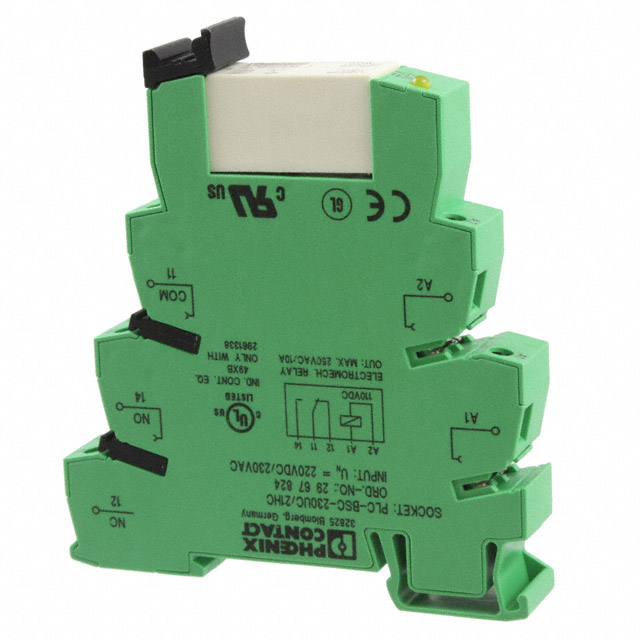

2967675

Active

Phoenix Contact

RELAY MODULE SCREW CONNECTION TERMINAL SPDT

Search across all available documentation for this part.

Active

Phoenix Contact

RELAY MODULE SCREW CONNECTION TERMINAL SPDT

Technical Specifications

Parameters and characteristics for this part

Specification	2967675

Approval Agency	UKCA, CE
Coil Current	4.5 mA
Coil Resistance	51.1 kOhms
Coil Type	Non Latching
Coil Voltage	230 VAC
Contact Form	SPDT (1 Form C)
Contact Material	Silver Nickel (AgNi)
Contact Rating (Current)	10 A
Features	Lighted Indicator, Socket Included
Mounting Type	DIN Rail
Operate Time	7 ms
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	10 ms
Switching Voltage	250 VAC, 250 VDC
Termination Style	Screw Terminal

Part	Release Time	Contact Rating (Current)	Operate Time	Contact Material	Switching Voltage	Termination Style	Relay Type	Approval Agency	Coil Type	Coil Current	Contact Form	Coil Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Coil Resistance	Features
Phoenix Contact 2967675	10 ms	10 A	7 ms	Silver Nickel (AgNi)	250 VAC 250 VDC	Screw Terminal	General Purpose	CE UKCA	Non Latching	4.5 mA	SPDT (1 Form C)	230 VAC	-40 °C	55 °C	DIN Rail	51.1 kOhms	Lighted Indicator Socket Included
Phoenix Contact 2967662	10 ms	10 A	7 ms	Silver Nickel (AgNi)	250 VAC 250 VDC	Screw Terminal	General Purpose	CE UKCA	Non Latching	4.5 mA	SPDT (1 Form C)	120 VAC 120 VDC	-40 °C	60 °C	DIN Rail	26.66 kOhms	Lighted Indicator Socket Included
Phoenix Contact 2967646	10 ms	10 A	8 ms	Silver Nickel (AgNi)	250 VAC 250 VDC	Screw Terminal	General Purpose	CE UKCA	Non Latching	20 mA	SPDT (1 Form C)	48 VDC	-40 °C	60 °C	DIN Rail	2.4 kOhms	Diode Lighted Indicator Socket Included
Phoenix Contact 2967659	10 ms	10 A	8 ms	Silver Nickel (AgNi)	250 VAC 250 VDC	Screw Terminal	General Purpose	CE UKCA	Non Latching	10 mA	SPDT (1 Form C)	60 VDC	-40 °C	60 °C	DIN Rail	6 kOhms	Diode Lighted Indicator Socket Included
Phoenix Contact 2967620	10 ms	10 A	8 ms	Silver Nickel (AgNi)	250 VAC 250 VDC	Screw Terminal	General Purpose	CE UKCA	Non Latching	18 mA	SPDT (1 Form C)	24 VDC	-40 °C	60 °C	DIN Rail	1440 Ohms	Lighted Indicator Socket Included

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

General Purpose Relay SPDT (1 Form C) 230VAC/DC Coil DIN Rail
