TB009-508-04BE

Active

CUI Devices

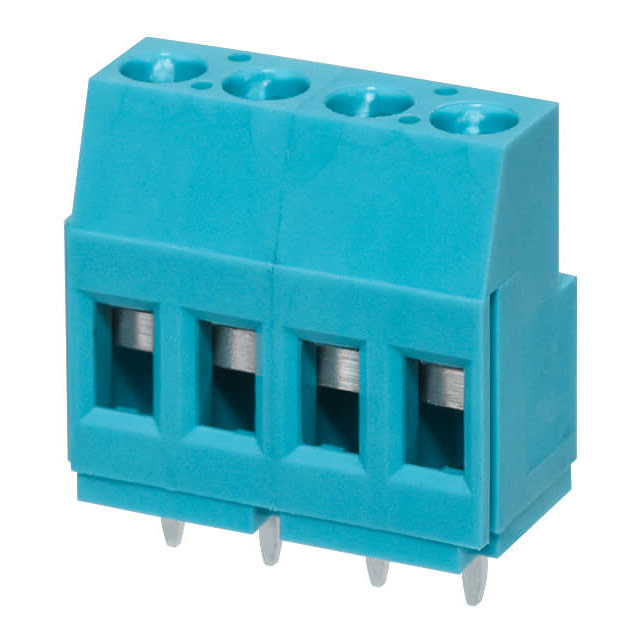

TERMINAL BLOCK, SCREW TYPE, 5.08

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TB009-508-04BE

Active

CUI Devices

TERMINAL BLOCK, SCREW TYPE, 5.08

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TB009-508-04BE

Clamp Material - Plating	Copper Alloy - Nickel Plated
Color	Blue
Contact Material - Plating	Copper Alloy - Tin Plated
Current	20 A
Features	Interlocking (Side)
Mating Orientation	Horizontal with Board
Mounting Type	Through Hole
Number of Levels	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.2 in
Pitch [x]	5.08 mm
Positions Per Level	4
Screw Material - Plating	Steel, Zinc Plated
Screw Thread	M3
Torque - Screw	4.4 Lb-In
Torque - Screw	0.5 Nm
Voltage	300 V
Wire Gauge [Max]	26 AWG
Wire Gauge [Min]	12 AWG
Wire Termination	Screw - Rising Cage Clamp

TB009 Series

Part	Screw Thread	Clamp Material - Plating	Pitch [x]	Pitch [x]	Contact Material - Plating	Torque - Screw	Torque - Screw	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Screw Material - Plating	Voltage	Current	Positions Per Level	Wire Gauge [Max]	Wire Gauge [Min]	Mating Orientation	Features	Color	Wire Termination	Number of Levels
CUI Devices TB009-508-15BE	M3	Copper Alloy - Nickel Plated	0.2 in	5.08 mm	Copper Alloy - Tin Plated	4.4 Lb-In	0.5 Nm	Through Hole	-40 °C	105 ░C	Steel Zinc Plated	300 V	20 A	15	26 AWG	12 AWG	Horizontal with Board	Interlocking (Side)	Blue	Screw - Rising Cage Clamp	1
CUI Devices TB009-508-16BE	M3	Copper Alloy - Nickel Plated	0.2 in	5.08 mm	Copper Alloy - Tin Plated	4.4 Lb-In	0.5 Nm	Through Hole	-40 °C	105 ░C	Steel Zinc Plated	300 V	20 A	16	26 AWG	12 AWG	Horizontal with Board	Interlocking (Side)	Blue	Screw - Rising Cage Clamp	1
CUI Devices TB009-508-11BE	M3	Copper Alloy - Nickel Plated	0.2 in	5.08 mm	Copper Alloy - Tin Plated	4.4 Lb-In	0.5 Nm	Through Hole	-40 °C	105 ░C	Steel Zinc Plated	300 V	20 A	11	26 AWG	12 AWG	Horizontal with Board	Interlocking (Side)	Blue	Screw - Rising Cage Clamp	1
CUI Devices TB009-508-06BE	M3	Copper Alloy - Nickel Plated	0.2 in	5.08 mm	Copper Alloy - Tin Plated	4.4 Lb-In	0.5 Nm	Through Hole	-40 °C	105 ░C	Steel Zinc Plated	300 V	20 A	6	26 AWG	12 AWG	Horizontal with Board	Interlocking (Side)	Blue	Screw - Rising Cage Clamp	1
CUI Devices TB009-508-14BE	M3	Copper Alloy - Nickel Plated	0.2 in	5.08 mm	Copper Alloy - Tin Plated	4.4 Lb-In	0.5 Nm	Through Hole	-40 °C	105 ░C	Steel Zinc Plated	300 V	20 A	14	26 AWG	12 AWG	Horizontal with Board	Interlocking (Side)	Blue	Screw - Rising Cage Clamp	1
CUI Devices TB009-508-24BE	M3	Copper Alloy - Nickel Plated	0.2 in	5.08 mm	Copper Alloy - Tin Plated	4.4 Lb-In	0.5 Nm	Through Hole	-40 °C	105 ░C	Steel Zinc Plated	300 V	20 A		26 AWG	12 AWG	Horizontal with Board	Interlocking (Side)	Blue	Screw - Rising Cage Clamp	1
CUI Devices TB009-508-05BE	M3	Copper Alloy - Nickel Plated	0.2 in	5.08 mm	Copper Alloy - Tin Plated	4.4 Lb-In	0.5 Nm	Through Hole	-40 °C	105 ░C	Steel Zinc Plated	300 V	20 A	5	26 AWG	12 AWG	Horizontal with Board	Interlocking (Side)	Blue	Screw - Rising Cage Clamp	1
CUI Devices TB009-508-22BE	M3	Copper Alloy - Nickel Plated	0.2 in	5.08 mm	Copper Alloy - Tin Plated	4.4 Lb-In	0.5 Nm	Through Hole	-40 °C	105 ░C	Steel Zinc Plated	300 V	20 A	22	26 AWG	12 AWG	Horizontal with Board	Interlocking (Side)	Blue	Screw - Rising Cage Clamp	1
CUI Devices TB009-508-02BE	M3	Copper Alloy - Nickel Plated	0.2 in	5.08 mm	Copper Alloy - Tin Plated	4.4 Lb-In	0.5 Nm	Through Hole	-40 °C	105 ░C	Steel Zinc Plated	300 V	20 A	2	26 AWG	12 AWG	Horizontal with Board	Interlocking (Side)	Blue	Screw - Rising Cage Clamp	1
CUI Devices TB009-508-04BE	M3	Copper Alloy - Nickel Plated	0.2 in	5.08 mm	Copper Alloy - Tin Plated	4.4 Lb-In	0.5 Nm	Through Hole	-40 °C	105 ░C	Steel Zinc Plated	300 V	20 A	4	26 AWG	12 AWG	Horizontal with Board	Interlocking (Side)	Blue	Screw - Rising Cage Clamp	1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 1.37
		10	$ 0.96
		25	$ 0.90
		50	$ 0.81
		100	$ 0.81
		250	$ 0.68
		600	$ 0.65
		1200	$ 0.58
		5400	$ 0.47

Description

General part information

TB009 Series

4 Position Wire to Board Terminal Block Horizontal with Board 0.200" (5.08mm) Through Hole
