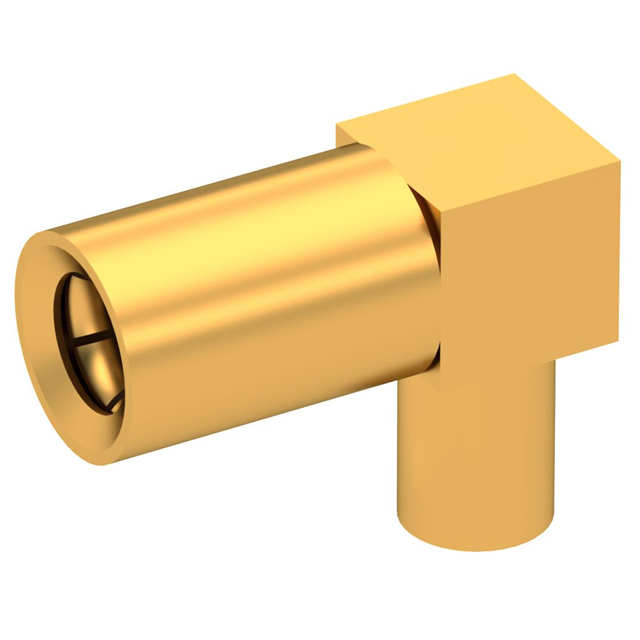

7405-1561-010

Active

Radiall USA, Inc.

SSMB F RA NA CR .086

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SSMB F RA NA CR .086

Technical Specifications

Parameters and characteristics for this part

Specification	7405-1561-010

Body Finish	Gold
Body Material	Brass
Cable Group	RG-405 (.085" Semi Rigid)
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SSMB
Connector Type	Plug, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	12.4 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	250 VDC

Part	Body Material	Housing Color	Contact Termination	Number of Ports	Frequency - Max [Max]	Mounting Type	Cable Group	Center Contact Material	Impedance	Voltage Rating	Mating Cycles	Connector Type	Center Contact Plating	Dielectric Material	Shield Termination	Fastening Type	Connector Style	Operating Temperature [Min]	Operating Temperature [Max]	Body Finish
Radiall USA, Inc. 7405-1561-010	Brass	Gold	Solder	1	12.4 GHz	Free Hanging (In-Line) Right Angle	RG-405 (.085" Semi Rigid)	Beryllium Copper	50 Ohms	250 VDC	500	Female Socket Plug	Gold	Polytetrafluoroethylene (PTFE)	Solder	Snap-On	SSMB	-65 ░C	165 °C	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SSMB Connector Plug, Female Socket 50 Ohms Free Hanging (In-Line), Right Angle Solder
