845-037-500-104
ActiveEDAC Inc.

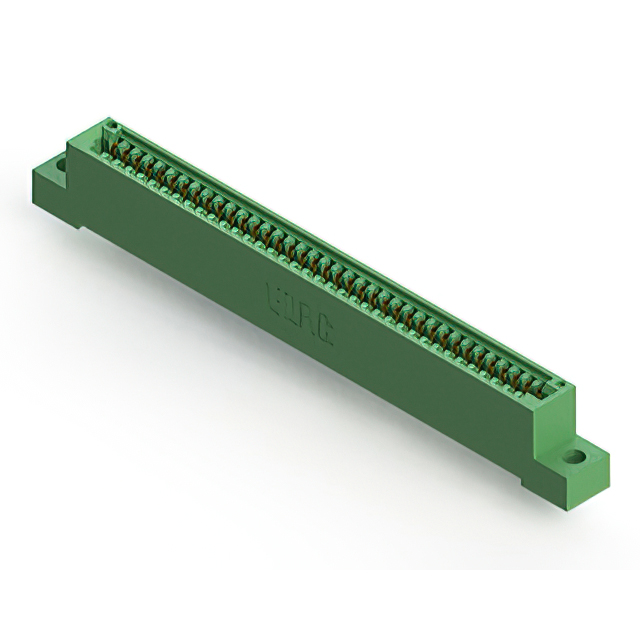

CONN EDGE SINGLE FML 37POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
845-037-500-104
ActiveEDAC Inc.
CONN EDGE SINGLE FML 37POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 845-037-500-104 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.96 mm |
| Flange Feature [diameter] | 0.156 in |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions | 37 |
| Number of Positions/Bay/Row [custom] | 37 |
| Number of Positions/Bay/Row [custom] | 37 |
| Number of Positions/Bay/Row [custom] | 37 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Solder Eyelet(s) |
| Termination Rows | 1 |
845-037 Series
...
| Part | Number of Positions | Termination Rows | Contact Material | Card Type | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Mounting Type | Pitch [x] | Pitch [x] | Contact Finish | Gender | Color | Contact Finish Thickness | Contact Finish Thickness | Number of Rows | Termination | Material - Insulation | Contact Type | Operating Temperature [Max] | Operating Temperature [Min] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Flange Feature | Flange Feature | Flange Feature | Read Out | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 37 | 1 | Copper Alloy | Non Specified - Single Edge | 37 | 37 | 37 | Through Hole | 2.54 mm | 0.1 in | Gold | Female | Green | 10 Áin | 0.25 Ám | 1 | Wire Wrap | Diallyl Phthalate (DAP) | Cantilever | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Side Mount Opening Unthreaded | 3.25 mm | 0.128 in | Single | ||
EDAC Inc. | 37 | 1 | Copper Alloy | Non Specified - Single Edge | 37 | 37 | 37 | Through Hole | 2.54 mm | 0.1 in | Gold | Female | Green | 10 Áin | 0.25 Ám | 1 | Solder Eyelet(s) | Diallyl Phthalate (DAP) | Cantilever | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Side Mount Opening Unthreaded | 3.25 mm | 0.128 in | Single | ||
EDAC Inc. | 37 | 1 | Copper Alloy | Non Specified - Single Edge | 37 | 37 | 37 | Through Hole | 2.54 mm | 0.1 in | Gold | Female | Green | 10 Áin | 0.25 Ám | 1 | Wire Wrap | Diallyl Phthalate (DAP) | Cantilever | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 4-40 Threaded Insert Top Mount Opening | Single | ||||
EDAC Inc. | 37 | 1 | Copper Alloy | Non Specified - Single Edge | 37 | 37 | 37 | Through Hole | 2.54 mm | 0.1 in | Gold | Female | Green | 10 Áin | 0.25 Ám | 1 | Solder Eyelet(s) | Diallyl Phthalate (DAP) | Cantilever | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 4-40 Threaded Insert Top Mount Opening | Single | ||||
EDAC Inc. | 37 | 1 | Copper Alloy | Non Specified - Single Edge | 37 | 37 | 37 | Through Hole Right Angle | 2.54 mm | 0.1 in | Gold | Female | Green | 10 Áin | 0.25 Ám | 1 | Solder | Diallyl Phthalate (DAP) | Cantilever | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Floating Bobbin Flush Mount | Single | 0.116 in | 2.95 mm | ||
EDAC Inc. | 37 | 1 | Copper Alloy | Non Specified - Single Edge | 37 | 37 | 37 | Through Hole | 2.54 mm | 0.1 in | Gold | Female | Green | 10 Áin | 0.25 Ám | 1 | Solder Eyelet(s) | Diallyl Phthalate (DAP) | Cantilever | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Side Mount Opening Unthreaded | 3.25 mm | 0.128 in | Single | ||
EDAC Inc. | 37 | 1 | Copper Alloy | Non Specified - Single Edge | 37 | 37 | 37 | Through Hole | 2.54 mm | 0.1 in | Gold | Female | Green | 10 Áin | 0.25 Ám | 1 | Wire Wrap | Diallyl Phthalate (DAP) | Cantilever | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Flush Mount Top Opening Unthreaded | Single | 0.156 in | 3.96 mm | ||
EDAC Inc. | 37 | 1 | Copper Alloy | Non Specified - Single Edge | 37 | 37 | 37 | Through Hole | 2.54 mm | 0.1 in | Gold | Female | Green | 10 Áin | 0.25 Ám | 1 | Solder Eyelet(s) | Diallyl Phthalate (DAP) | Cantilever | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Flush Mount Top Opening Unthreaded | Single | 0.156 in | 3.96 mm | ||
EDAC Inc. | 37 | 1 | Copper Alloy | Non Specified - Single Edge | 37 | 37 | 37 | Through Hole | 2.54 mm | 0.1 in | Gold | Female | Green | 10 Áin | 0.25 Ám | 1 | Wire Wrap | Diallyl Phthalate (DAP) | Cantilever | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 4-40 Threaded Insert Top Mount Opening | Single | ||||
EDAC Inc. | 37 | 1 | Copper Alloy | Non Specified - Single Edge | 37 | 37 | 37 | Through Hole | 2.54 mm | 0.1 in | Gold | Female | Green | 10 Áin | 0.25 Ám | 1 | Wire Wrap | Diallyl Phthalate (DAP) | Cantilever | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 3.25 mm | 0.128 in | Single |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
845-037 Series
37 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green
