NRF2402G-REEL7

Active

Nordic Semiconductor ASA

RF XMITTER GFSK 2.4GHZ 16VQFN

Search across all available documentation for this part.

Active

Nordic Semiconductor ASA

RF XMITTER GFSK 2.4GHZ 16VQFN

Technical Specifications

Parameters and characteristics for this part

Specification	NRF2402G-REEL7

Antenna Connector	PCB, Surface Mount
Applications	Home Automation, Remote Sensing, RKE
Current - Transmitting	11.5 mA
Data Interface	Surface Mount, PCB
Data Rate (Max)	1 Mbps
Frequency	2.4 GHz
Modulation or Protocol	GFSK
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C

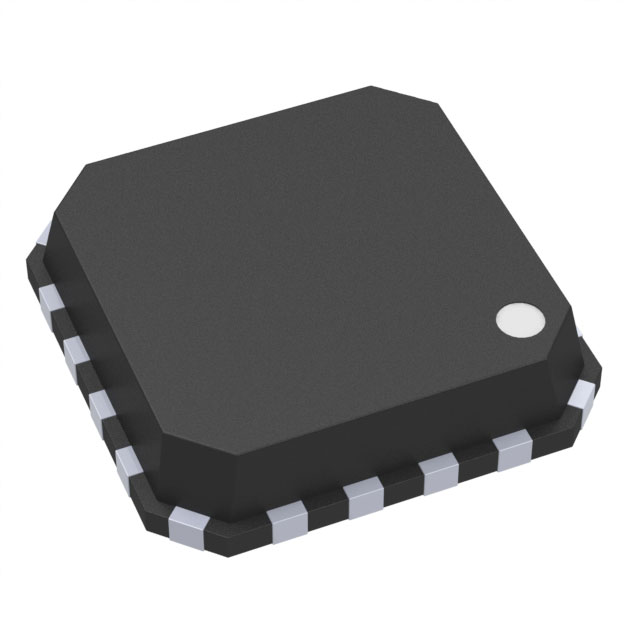

Package / Case	16-VQFN Exposed Pad
Power - Output	0 dBm
Supplier Device Package	16-QFN (4x4)
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	1.9 V

Part	Frequency	Current - Transmitting	Operating Temperature [Max]	Operating Temperature [Min]	Data Rate (Max)	Power - Output	Antenna Connector	Mounting Type	Modulation or Protocol	Data Interface	Voltage - Supply [Max]	Voltage - Supply [Min]	Applications	Supplier Device Package	Package / Case
Nordic Semiconductor ASA NRF2402G	2.4 GHz	11.5 mA	85 °C	-40 °C	1 Mbps	0 dBm	PCB Surface Mount	Surface Mount	GFSK	PCB Surface Mount	3.6 V	1.9 V	Home Automation Remote Sensing RKE	16-QFN (4x4)	16-VQFN Exposed Pad
Nordic Semiconductor ASA NRF2402G-REEL7	2.4 GHz	11.5 mA	85 °C	-40 °C	1 Mbps	0 dBm	PCB Surface Mount	Surface Mount	GFSK	PCB Surface Mount	3.6 V	1.9 V	Home Automation Remote Sensing RKE	16-QFN (4x4)	16-VQFN Exposed Pad

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1500	$ 1.50

General part information

RF Transmitter GFSK 2.4GHz 0dBm 1Mbps PCB, Surface Mount Antenna 16-VQFN Exposed Pad
