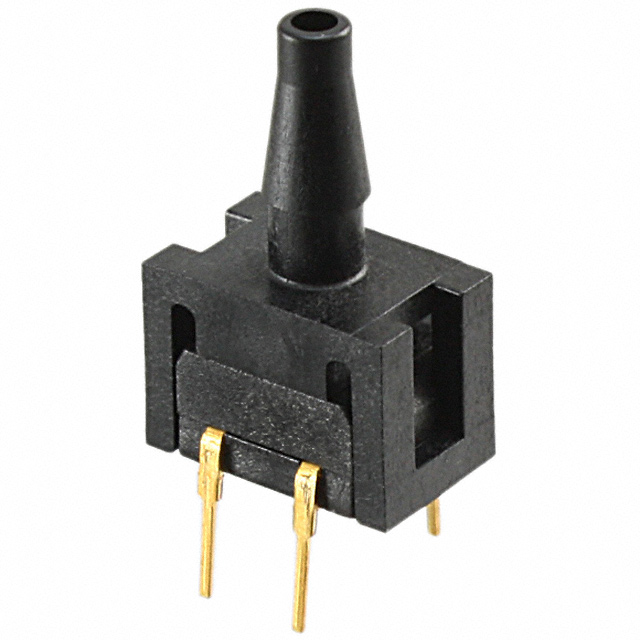

26PCCFB2G

Active

Honeywell Sensing and Productivity Solutions

SENSOR 15PSIC 0.18" 0.1V

Search across all available documentation for this part.

Active

Honeywell Sensing and Productivity Solutions

SENSOR 15PSIC 0.18" 0.1V

Technical Specifications

Parameters and characteristics for this part

Part	Output Type	Applications	Termination Style	Port Style	Operating Pressure	Operating Pressure	Package / Case	Voltage - Supply [Min]	Voltage - Supply [Max]	Mounting Type	Pressure Type	Accuracy	Features	Output [Min]	Output [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Maximum Pressure	Maximum Pressure	Operating Pressure [custom]	Operating Pressure [custom]
Honeywell Sensing and Productivity Solutions 26PCCFB6G	Wheatstone Bridge	Board Mount	PC Pin	Barbed	103.42 kPa	15 PSI	4-SIP Module	2.5 V	16 V	Through Hole	Compound	0.5 %	Temperature Compensated	0 mV	100 mV	85 °C	-40 °C	45 PSI	310.26 kPa
Honeywell Sensing and Productivity Solutions 26PCCFB2G	Wheatstone Bridge	Board Mount	PC Pin	Barbed			4-SIP Module	2.5 V	16 V	Through Hole	Compound	0.5 %	Temperature Compensated	0 mV	100 mV	85 °C	-40 °C	45 PSI	310.26 kPa	15 PSI	103.42 kPa

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pressure Sensor 15PSI (103.42kPa) Compound Male - 0.18" (4.57mm) Tube 0 mV ~ 100 mV (10V) 4-SIP Module
