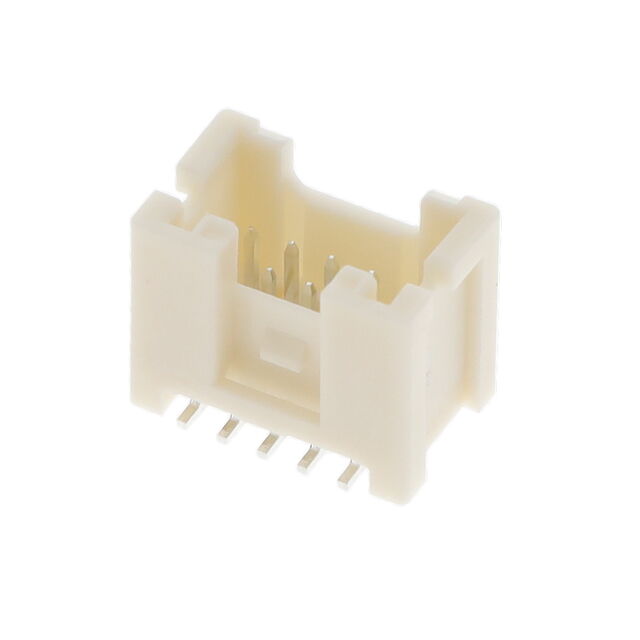

BM10B-PUDSS-TFC

Active

JST Sales America Inc.

CONN HEADER SMD 10POS 2MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN HEADER SMD 10POS 2MM

Technical Specifications

Parameters and characteristics for this part

Specification	BM10B-PUDSS-TFC

Connector Type	Header
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Latch Holder
Insulation Color	Natural
Insulation Height	0.425 in
Insulation Height	10.8 mm
Insulation Material	Polyamide (PA), Nylon
Mated Stacking Heights	11 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VDC

Part	Fastening Type	Contact Finish - Post	Number of Positions	Number of Rows	Mated Stacking Heights	Material Flammability Rating	Style	Pitch - Mating [x]	Pitch - Mating [x]	Insulation Material	Connector Type	Contact Type	Number of Positions Loaded	Mounting Type	Insulation Color	Contact Shape	Termination	Current Rating (Amps)	Contact Material	Shrouding	Voltage Rating	Insulation Height	Insulation Height	Operating Temperature [Min]	Operating Temperature [Max]
JST Sales America Inc. BM10B-PUDSS-TFC	Latch Holder	Tin	10	2	11 mm	UL94 V-0	Board to Cable/Wire	0.079 in	2 mm	Nylon Polyamide (PA)	Header	Male Pin	All	Surface Mount	Natural	Square	Solder	3 A	Copper Alloy	Shrouded - 4 Wall	250 VDC	0.425 in	10.8 mm	-25 °C	85 °C
