1988011

Active

Phoenix Contact

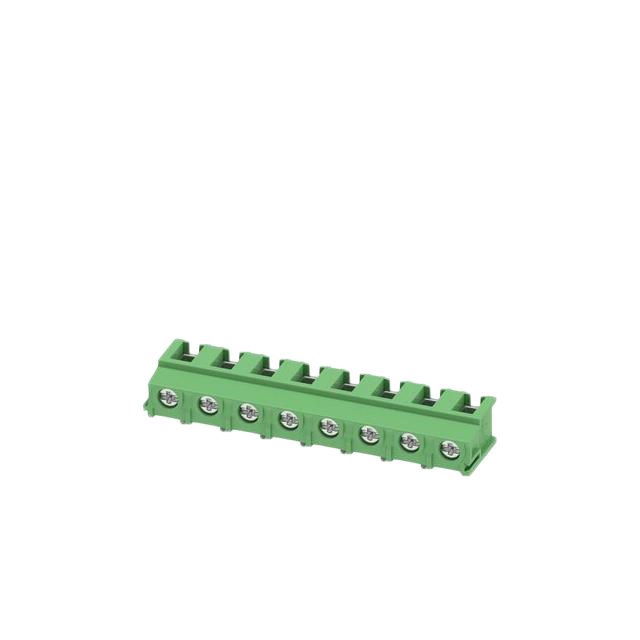

FIXED TERMINAL BLOCKS PT 2.5/ 8-7.5-V

Search across all available documentation for this part.

Active

Phoenix Contact

FIXED TERMINAL BLOCKS PT 2.5/ 8-7.5-V

Technical Specifications

Parameters and characteristics for this part

Fixed Terminal Blocks PT 2.5/ 8-7.5-V

Part	Positions Per Level	Pitch [x]	Pitch [x]	Housing Material	Number of Levels	Mating Orientation	Color	Voltage	Wire Termination	Screw Thread	Features	Torque - Screw [Min]	Torque - Screw [Max]	Torque - Screw [Min]	Torque - Screw [Max]	Current	Mounting Type	Wire Gauge [Min]	Wire Gauge [Max]
Phoenix Contact 1987821	12	5 mm	0.197 in	Polyamide (PA) Nylon	1	Vertical with Board	Green	300 V	Screw	M3	Interlocking (Side)	3.9 Lb-In	4.4 Lb-In	0.45 Nm	0.5 Nm	20 A	Through Hole	12 AWG	20 AWG
Phoenix Contact 1988011	8	7.5 mm	0.295 in	Polyamide (PA) Nylon	1	Vertical with Board	Green	300 V	Screw - Leaf Spring Wire Guard	M3	Interlocking (Side)	3.9 Lb-In	4.4 Lb-In	0.45 Nm	0.5 Nm	20 A	Through Hole	12 AWG	20 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 5.42
Sager	N/A	100	$ 6.75
		200	$ 6.51

General part information

Fixed Terminal Blocks PT 2.5/ 8-7.5-V
