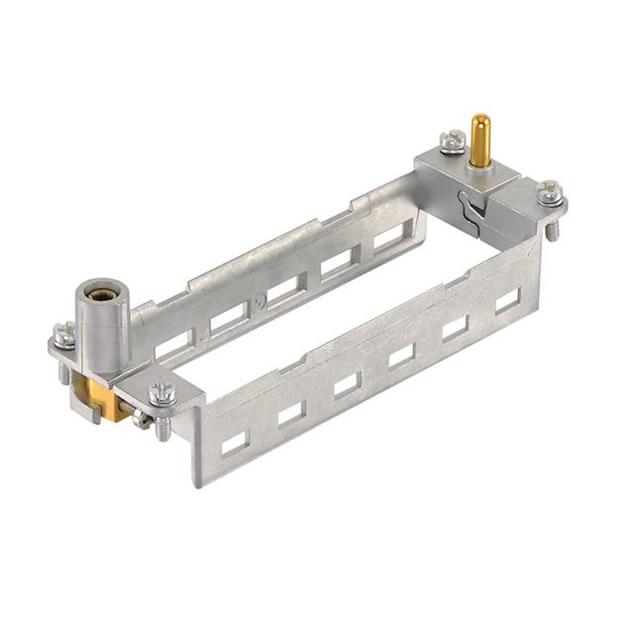

09142240313 - 09142240303

09142240313

Active
HARTING Technology Group

CONNECTOR ACCESSORIES HINGED FRAME STRAIGHT ZINC DIE CAST POWDER HAN-MODULAR® BAG

Deep-Dive with AI

Search across all available documentation for this part.

Documents0914(0,2)403(0,1)3 DatasheetDatasheet+1
09142240313 - 09142240303

09142240313

Active
HARTING Technology Group

CONNECTOR ACCESSORIES HINGED FRAME STRAIGHT ZINC DIE CAST POWDER HAN-MODULAR® BAG

Deep-Dive with AI

Documents0914(0,2)403(0,1)3 DatasheetDatasheet+1

Technical Specifications

Parameters and characteristics for this part

Specification09142240313
Frame TypeHinged, Retaining Frame
GenderMale, Female
Includes1 Frame, 4 Screws
MaterialZinc Die Cast
Number of Modules6
Operating Temperature [Max]125 °C
Operating Temperature [Min]-40 °C
Size24 B

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 64.50
10$ 48.28
25$ 43.59
50$ 40.55
100$ 37.88
250$ 34.84
NewarkEach 1$ 39.26
5$ 36.67
10$ 34.40
25$ 32.40
50$ 30.61
100$ 29.02

Description

General part information

09142240 Series

6 Module Female/Male Heavy Duty Retaining Frame, Hinged Size 24B
