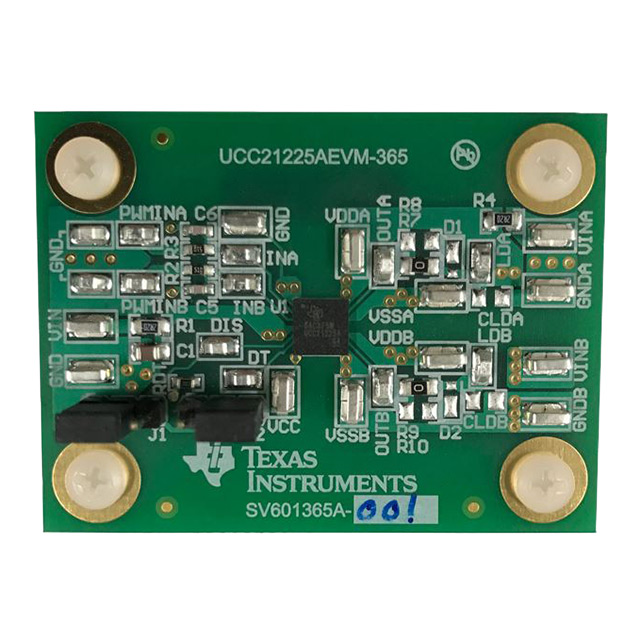

UCC21225AEVM-365

Active

Texas Instruments

EVAL BOARD FOR UCC21225A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

UCC21225AEVM-365

Active

Texas Instruments

EVAL BOARD FOR UCC21225A

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UCC21225AEVM-365

Function	Gate Driver
Supplied Contents	Board(s)
Type	Power Management
Utilized IC / Part	UCC21225A

UCC21225A Series

2.5kVrms, 4A/6A dual-channel isolated gate driver with dual input, 5V UVLO & LGA package

Part	Supplier Device Package	Current - Output High, Low	Number of Channels [custom]	Voltage - Output Supply [Max]	Voltage - Output Supply [Min]	Mounting Type	Package / Case	Approval Agency	Voltage - Isolation	Operating Temperature [Max]	Operating Temperature [Min]	Common Mode Transient Immunity (Min) [Min]	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Propagation Delay tpLH / tpHL (Max) [Max]	Pulse Width Distortion (Max) [Max]	Technology	Function	Utilized IC / Part	Supplied Contents	Type	Grade	Qualification
Texas Instruments UCC21225ANPLT	13-VLGA (5x5)	4 A 6 A	2	18 V	3 V	Surface Mount	13-VFLGA	CQC CSA UR VDE	2500 Vrms	125 °C	-40 °C	100 V/ns	7 ns	6 ns	30 ns	6 ns	Capacitive Coupling
Texas Instruments UCC21225AEVM-365																		Gate Driver	UCC21225A	Board(s)	Power Management
Texas Instruments UCC21225ANPLR	13-VLGA (5x5)	4 A 6 A	2	18 V	3 V	Surface Mount	13-VFLGA	CQC CSA UR VDE	2500 Vrms	125 °C	-40 °C	100 V/ns	7 ns	6 ns	30 ns	6 ns	Capacitive Coupling					Automotive	AEC-Q100

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 58.80

Description

General part information

UCC21225A Series

The UCC21225A is an isolated dual-channel gate driver with 4-A source and 6-A sink peak current in a 5-mm x 5-mm LGA-13 package. It is designed to drive power transistors up to 5-MHz with best-in-class propagation delay and pulse-width distortion.

The input side is isolated from the two output drivers by a 2.5-kVRMSisolation barrier, with 100-V/ns minimum common-mode transient immunity (CMTI). Internal functional isolation between the two secondary side drivers allows working voltage up to 700-VDC.

This driver can be configured as two low-side, two high-side, or a half-bridge driver with programmable dead time (DT). A disable pin shuts down both outputs simultaneously when it is set high, and allows normal operation when left open or grounded.
