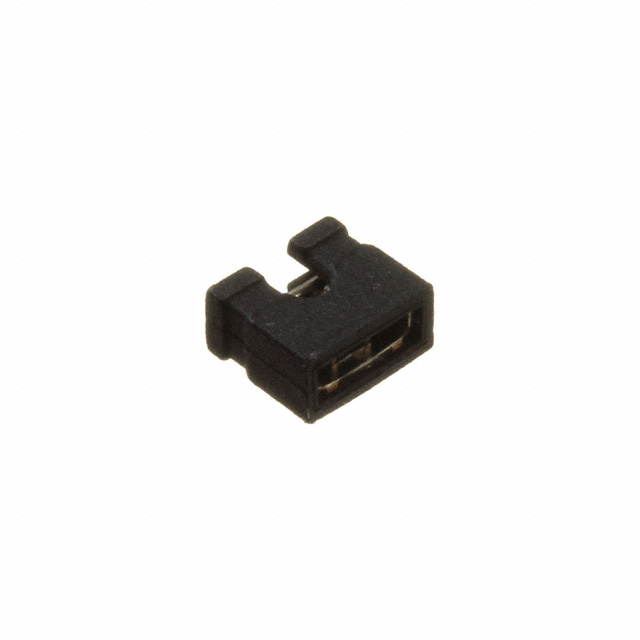

MSC-G

Active

Adam Tech

SHUNT 2.54MM PITCH

Search across all available documentation for this part.

Active

Adam Tech

SHUNT 2.54MM PITCH

Technical Specifications

Parameters and characteristics for this part

Specification	MSC-G

Color	Black
Contact Finish	Gold
Contact Finish Thickness	Flash
Current Rating (Amps)	3 A
Gender	Female Sockets
Height [z]	0.177 in
Height [z]	4.5 mm
Housing Material	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0
Number of Positions or Pins (Grid) [custom]	1 x 2
Number of Positions or Pins (Grid) [custom]	2
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Type	Open Top
Voltage Rating	250 VAC

Part	Gender	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Pitch [x]	Pitch [x]	Material Flammability Rating	Height [z]	Height [z]	Current Rating (Amps)	Contact Finish	Voltage Rating	Type	Housing Material	Color	Contact Finish Thickness
Adam Tech MSC-G	Female Sockets	1 x 2	2	2.54 mm	0.1 in	UL94 V-0	0.177 in	4.5 mm	3 A	Gold	250 VAC	Open Top	Polybutylene Terephthalate (PBT) Glass Filled	Black	Flash

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 (1 x 2) Position Shunt Connector Black Open Top 0.100" (2.54mm) Gold
