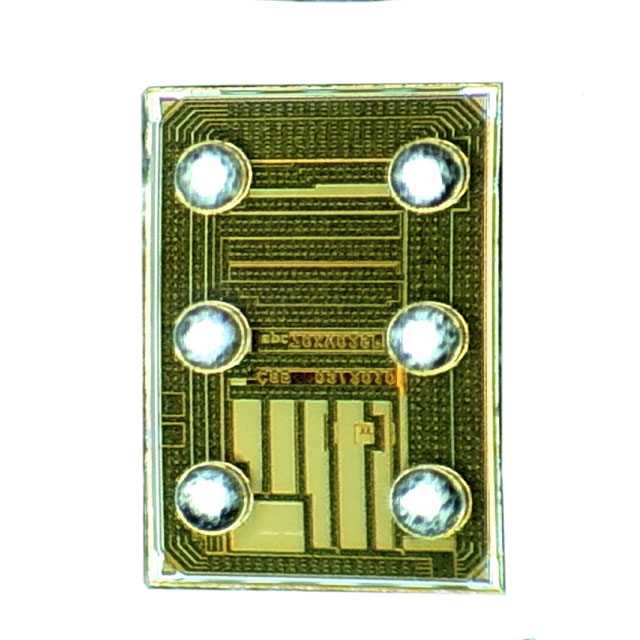

EPC700-CSP6-A
ActiveESPROS Photonics AG
IC OUTPUT DRIVER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EPC700-CSP6-A
ActiveESPROS Photonics AG
IC OUTPUT DRIVER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EPC700-CSP6-A |
|---|---|
| Current - Output (Max) [Max] | 50 mA |
| Features | Status Flag |
| Input Type | CMOS |
| Interface | 1-Wire |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Low Side |
| Output Type | N-Channel |
| Package / Case | CSPBGA, 6-XFBGA |
| Ratio - Input:Output [custom] | 1:1 |
| Supplier Device Package | 6-CSP |
| Supplier Device Package [x] | 1.39 |
| Supplier Device Package [y] | 0.97 |
| Switch Type | General Purpose |
| Voltage - Load [Max] | 30 V |
| Voltage - Load [Min] | 9.6 V |
| Voltage - Supply (Vcc/Vdd) [Max] | 5.5 V |
| Voltage - Supply (Vcc/Vdd) [Min] | 2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 250 | $ 0.63 | |
| 500 | $ 0.56 | |||
| 1250 | $ 0.44 | |||
| 2500 | $ 0.41 | |||
| 6250 | $ 0.39 | |||
| 12500 | $ 0.37 | |||
| 25000 | $ 0.36 | |||
Description
General part information
EPC700 Series
Power Switch/Driver 1:1 N-Channel 50mA 6-CSP (1.39x0.97)
