RFAANJNJ

Active

BULGIN LIMITED

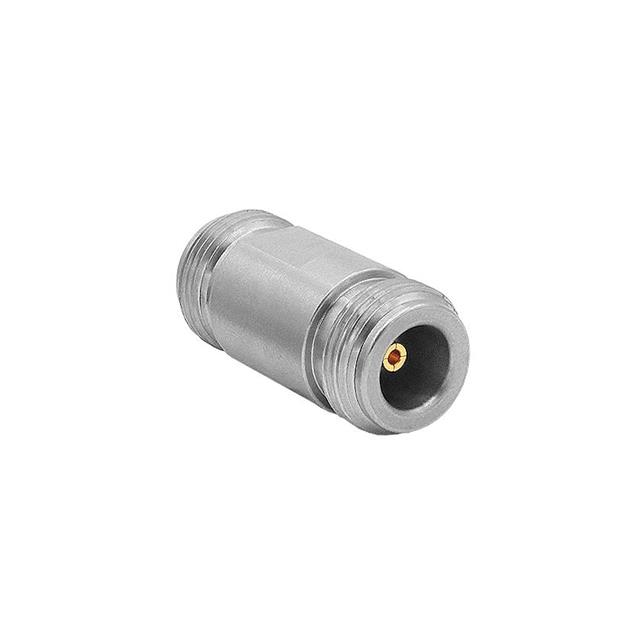

RF / COAXIAL ADAPTER, N, JACK, N, JACK, STRAIGHT ADAPTER, 50 OHM

Search across all available documentation for this part.

Active

BULGIN LIMITED

RF / COAXIAL ADAPTER, N, JACK, N, JACK, STRAIGHT ADAPTER, 50 OHM

Technical Specifications

Parameters and characteristics for this part

Specification	RFAANJNJ

Adapter Series	N to N
Adapter Type	Jack to Jack
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Gender	Female to Female
Conversion Type	Same Series
Convert From (Adapter End)	N Jack, Female Socket
Convert To (Adapter End)	Female Socket, N Jack
Dielectric Material	Polyetherimide (PEI), Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Style	Straight

Part	Frequency - Max [Max]	Convert From (Adapter End)	Conversion Type	Operating Temperature [Max]	Operating Temperature [Min]	Impedance	Body Material	Style	Adapter Type	Center Contact Material	Center Gender	Dielectric Material	Mounting Type	Convert To (Adapter End)	Adapter Series	Mating Cycles
BULGIN LIMITED RFAANPNP	18 GHz	N Plug Male Pin	Same Series	85 °C	-40 °C	50 Ohms	Stainless Steel	Straight	Plug to Plug	Beryllium Copper	Male to Male	Polyetherimide (PEI) Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line)	Male Pin N Plug	N to N	500
BULGIN LIMITED RFAANPNJ	18 GHz	N Plug Male Pin	Same Series	85 °C	-40 °C	50 Ohms	Stainless Steel	Straight	Plug to Jack	Beryllium Copper		Polyetherimide (PEI) Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line)	Female Socket N Jack	N to N	500
BULGIN LIMITED RFAANJNJ	18 GHz	Female Socket N Jack	Same Series	85 °C	-40 °C	50 Ohms	Stainless Steel	Straight	Jack to Jack	Beryllium Copper	Female to Female	Polyetherimide (PEI) Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line)	Female Socket N Jack	N to N	500

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 85.22
Newark	Each	1	$ 122.98

General part information

Adapter Coaxial Connector N Jack, Female Socket To N Jack, Female Socket 50 Ohms
