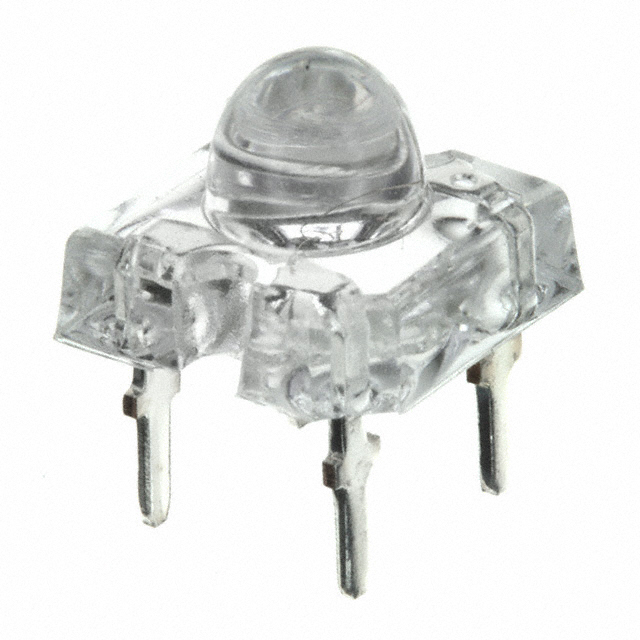

R50BG2-4-0045

Active

Bivar Inc.

LED, THROUGH HOLE, 7.6MM X 7.6MM BI-COLOR, BLUE/GREEN, (460NM/515NM), (3000MCD/10000MCD), WATER CLEAR LENS, 45 DEG VIEWING ANGLE

Search across all available documentation for this part.

Active

Bivar Inc.

LED, THROUGH HOLE, 7.6MM X 7.6MM BI-COLOR, BLUE/GREEN, (460NM/515NM), (3000MCD/10000MCD), WATER CLEAR LENS, 45 DEG VIEWING ANGLE

Technical Specifications

Parameters and characteristics for this part

Specification	R50BG2-4-0045

Color	Green, Blue
Configuration	Common Cathode
Current - Test	50 mA, 50 mA
Height (Max) [Max]	7.8 mm
Lens Color	Colorless
Lens Size [diameter]	4.6 mm Dia
Lens Style	Round with Domed Top
Lens Transparency	Clear
Millicandela Rating	5000 mcd, 400 mcd
Mounting Type	Through Hole
Package / Case	4-DIP
Package / Case	0.2 in
Package / Case	0.2 in
Size / Dimension [x]	7.6 mm
Size / Dimension [y]	7.6 mm
Viewing Angle	45 °
Voltage - Forward (Vf) (Typ) [custom]	3.8 V
Voltage - Forward (Vf) (Typ) [custom]	3.8 V
Wavelength - Dominant [custom]	465 nm
Wavelength - Dominant [custom]	520 nm

Part	Wavelength - Dominant [custom]	Wavelength - Dominant [custom]	Color	Lens Style	Millicandela Rating	Viewing Angle	Size / Dimension [y]	Size / Dimension [x]	Lens Transparency	Current - Test	Lens Size	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Height (Max) [Max] [z]	Mounting Type	Lens Color	Package / Case	Package / Case	Package / Case	Configuration	Height (Max) [Max]	Lens Size [diameter]	Millicandela Rating [custom]	Millicandela Rating [custom]
Bivar Inc. R50BG2-F-0160	465 nm	520 nm	Blue Green	Square with Flat Top	150 mcd 800 mcd	160 °	7.6 mm	7.6 mm	Clear	50 mA 50 mA	7.6 mm	3.8 V	3.8 V	4.4 mm	Through Hole	Colorless	4-DIP	0.2 in	0.2 in	Common Cathode
Bivar Inc. R50BG2-4-0045	465 nm	520 nm	Blue Green	Round with Domed Top	400 mcd 5000 mcd	45 °	7.6 mm	7.6 mm	Clear	50 mA 50 mA		3.8 V	3.8 V		Through Hole	Colorless	4-DIP	0.2 in	0.2 in	Common Cathode	7.8 mm	4.6 mm Dia
Bivar Inc. R50BG2-5-0080	465 nm	520 nm	Blue Green	Round with Domed Top		80 °	7.6 mm	7.6 mm	Clear	50 mA 50 mA		3.8 V	3.8 V	6.9 mm	Through Hole	Colorless	4-DIP	0.2 in	0.2 in	Common Cathode		5 mm Dia	1500 mcd	150 mcd

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Blue, Green 465nm Blue, 520nm Green LED Indication - Discrete 3.8V Blue, 3.8V Green 4-DIP (0.200", 5.08mm)
