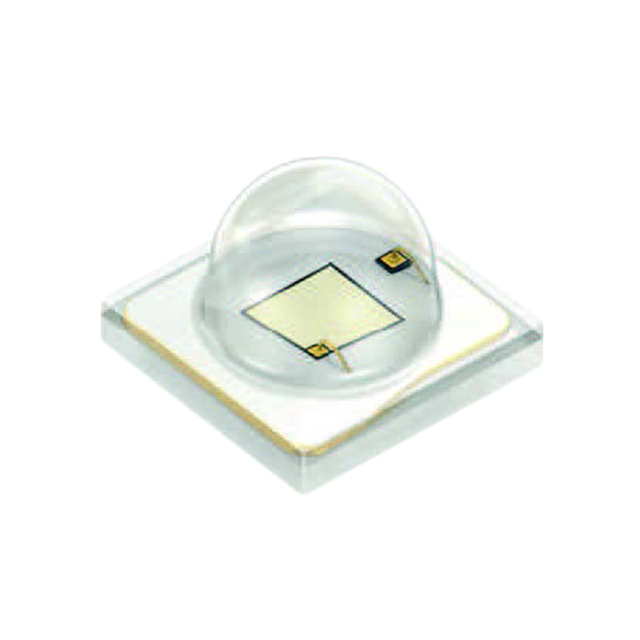

GD CS8PM1.14-UOVJ-W4-1-350-R18
Activeams-OSRAM USA INC.
LED OSLON SSL80 BLUE 455NM SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
GD CS8PM1.14-UOVJ-W4-1-350-R18
Activeams-OSRAM USA INC.
LED OSLON SSL80 BLUE 455NM SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GD CS8PM1.14-UOVJ-W4-1-350-R18 |
|---|---|
| Color | Blue |
| Current - Max [Max] | 1 A |
| Current - Test | 350 mA |
| Height - Seated (Max) [Max] [z] | 0.091 " |
| Height - Seated (Max) [Max] [z] | 2.31 mm |
| Luminous Flux @ Current/Temperature | 711 mW |
| Luminous Flux @ Current/Temperature [Max] | 763 mW |
| Luminous Flux @ Current/Temperature [Min] | 658 mW |
| Mounting Type | Surface Mount |
| Package / Case | 1212 |
| Package / Case | 3030 Metric |
| Size / Dimension [x] | 0.118 in |
| Size / Dimension [x] | 3 mm |
| Size / Dimension [y] | 3 mm |
| Size / Dimension [y] | 0.118 in |
| Supplier Device Package | SMD |
| Thermal Resistance of Package | 8.2 °C/W |
| Viewing Angle | 80 ° |
| Voltage - Forward (Vf) (Typ) | 2.85 V |
| Wavelength | 455 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.62 | |
| 10 | $ 1.02 | |||
| 100 | $ 0.76 | |||
| Digi-Reel® | 1 | $ 1.62 | ||
| 10 | $ 1.02 | |||
| 100 | $ 0.76 | |||
| Tape & Reel (TR) | 600 | $ 0.70 | ||
| 1200 | $ 0.57 | |||
| 3000 | $ 0.55 | |||
| 6000 | $ 0.53 | |||
| 15000 | $ 0.52 | |||
Description
General part information
BGDCS8PM Series
LED Lighting Color OSLON® SSL 80 Blue 455nm (Typ) 1212 (3030 Metric)
