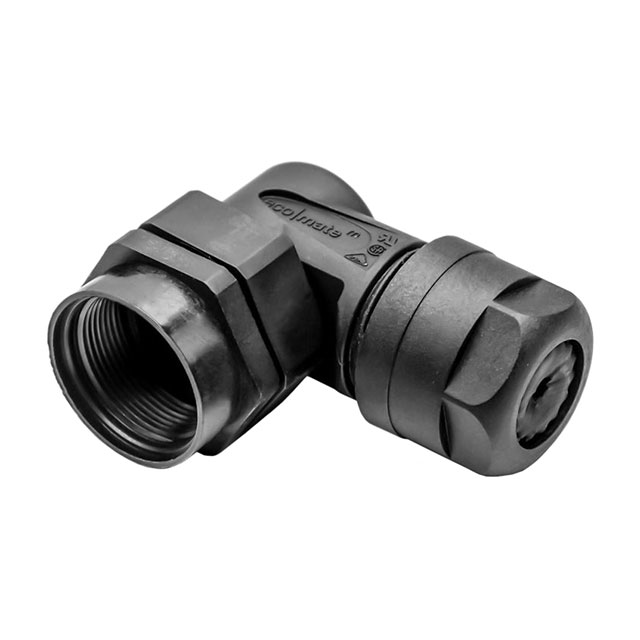

C016 G09 041 G10 X

Active

Amphenol Tuchel Industrial

CONN BACKSHELL W/CLMP BLACK

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN BACKSHELL W/CLMP BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	C016 G09 041 G10 X

Cable Exit	90 °
Cable Opening [Max] [custom]	12.5 mm
Cable Opening [Max] [custom]	0.492 in
Cable Opening [Min] [custom]	6 mm
Cable Opening [Min] [custom]	0.236 in
Color	Black
Features	Clamping Ring, Gasket
For Use With/Related Products	C016 Series Connectors
Includes	1 Backshell, 1 Clamping Ring, 1 Cable Nut, 2 Gaskets
Ingress Protection	IP67, IP65
Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Shielding	Unshielded
Type	Backshell, Cable Clamp

Part	Cable Exit	For Use With/Related Products	Includes	Features	Material Flammability Rating	Shielding	Color	Material	Ingress Protection	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Type
Amphenol Tuchel Industrial C016 G09 041 G10 X	90 °	C016 Series Connectors	1 Backshell 1 Cable Nut 1 Clamping Ring 2 Gaskets	Clamping Ring Gasket	UL94 V-0	Unshielded	Black	Polyamide (PA66) Nylon 6/6	IP65 IP67	6 mm	12.5 mm	0.236 in	0.492 in	Backshell Cable Clamp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	20	$ 7.46

General part information

Black Connector Backshell, Cable Clamp
