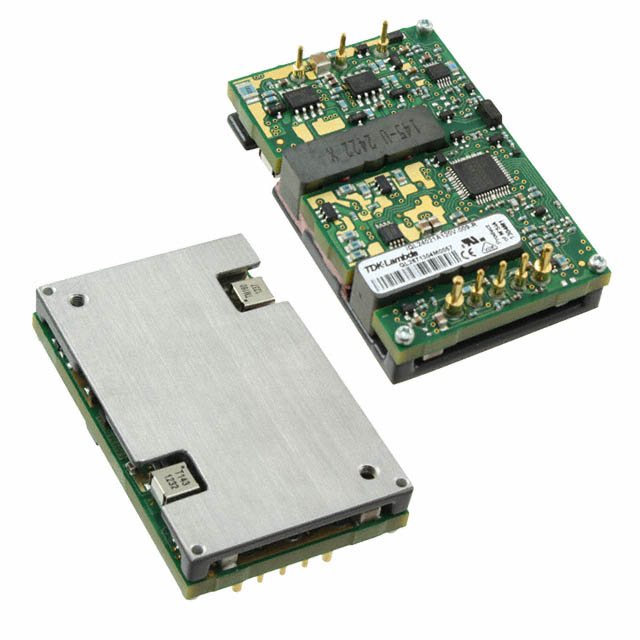

IQL24050A033V-009-R
ActiveTDK-LAMBDA
DC-DC REGULATED POWER SUPPLY MODULE, 1 OUTPUT, 165W, HYBRID, PACKAGE-8
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | IQL24050A033V-009-R |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 50 A |
| Efficiency | 90.5 % |
| Features | OVP, OCP, OTP, Remote On/Off |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Quarter Brick |
| Size / Dimension [x] | 57.9 mm |
| Size / Dimension [x] | 2.28 in |
| Size / Dimension [y] | 1.45 in |
| Size / Dimension [y] | 36.8 mm |
| Size / Dimension [z] | 13.2 mm |
| Size / Dimension [z] | 0.52 " |
| Supplier Device Package | Quarter Brick |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 36 V |
| Voltage - Input (Min) [Min] | 18 V |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 97.30 | |
| 5 | $ 91.73 | |||
| 10 | $ 89.43 | |||
| 25 | $ 86.48 | |||
| 40 | $ 85.00 | |||
| 80 | $ 82.87 | |||
Description
General part information
IQL24050 Series
Isolated Module DC DC Converter 1 Output 3.3V 50A 18V - 36V Input
