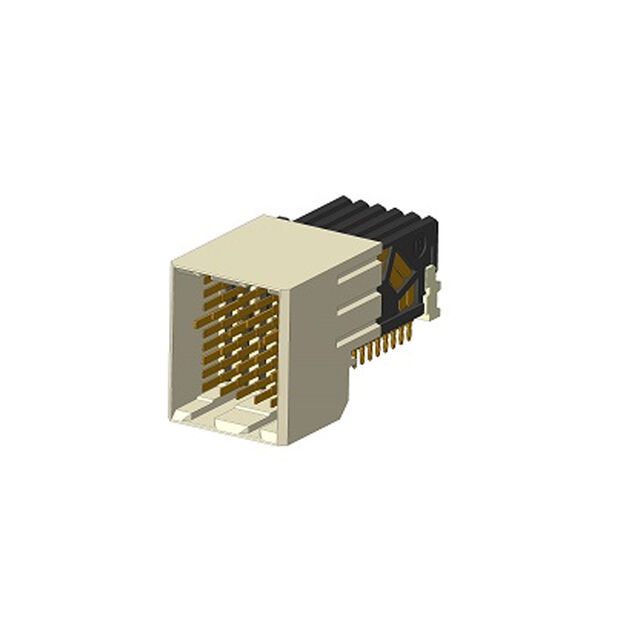

10039851-111LF

Active

Amphenol ICC (FCI)

CONN HDR HI SPEED 54POS EDGE MT

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CONN HDR HI SPEED 54POS EDGE MT

Technical Specifications

Parameters and characteristics for this part

Specification	10039851-111LF

Color	Natural
Connector Style	High Speed
Connector Type	Header, Male Pins
Connector Usage	Daughtercard
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Columns	6
Number of Positions	54
Number of Positions Loaded	All
Number of Rows	9
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Termination	Press-Fit

Part	Mounting Type	Material Flammability Rating	Connector Usage	Connector Style	Number of Rows	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Color	Number of Positions	Number of Positions Loaded	Termination	Number of Columns	Contact Layout, Typical [custom]	Contact Layout, Typical [custom]	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]
Amphenol ICC (FCI) 10039851-111LF	Board Edge Right Angle Through Hole	UL94 V-0	Daughtercard	High Speed	9	85 °C	-55 °C	Header Male Pins	Natural	54	All	Press-Fit	6
Amphenol ICC (FCI) 10039851-101LF	Board Edge Right Angle Through Hole	UL94 V-0	Daughtercard	High Speed	9			Header Male Pins	Natural	54	All	Press-Fit	6	18	18	Gold	0.76 Ám	30 Áin	0.055 in	1.4 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

54 Connector Header, Male Pins Board Edge, Through Hole, Right Angle Natural High Speed
