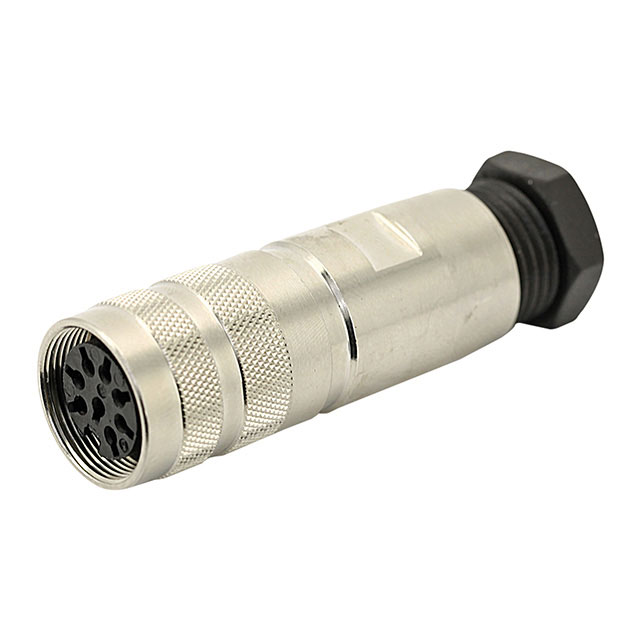

C091 31D008 201 2
ActiveAmphenol Tuchel Industrial
CONN PLUG FMALE 8P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
C091 31D008 201 2
ActiveAmphenol Tuchel Industrial
CONN PLUG FMALE 8P GOLD SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | C091 31D008 201 2 |
|---|---|
| Color | Silver |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Gold |
| Current Rating (Amps) | 7 A |
| Features | Strain Relief |
| Ingress Protection | IP69K, IP65, IP67 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 8 |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Keyed |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Die Cast |
| Shell Size - Insert | M16-8 |
| Shielding | Shielded |
| Voltage Rating | 60 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 27.15 | |
| 10 | $ 23.77 | |||
| 25 | $ 22.75 | |||
| 50 | $ 22.01 | |||
| 100 | $ 21.28 | |||
| 300 | $ 20.11 | |||
| 500 | $ 19.52 | |||
Description
General part information
C091 31D008 Series
8 Position Circular Connector Plug, Female Sockets Solder Cup
