P2RSA-3778

Active

RF Industries

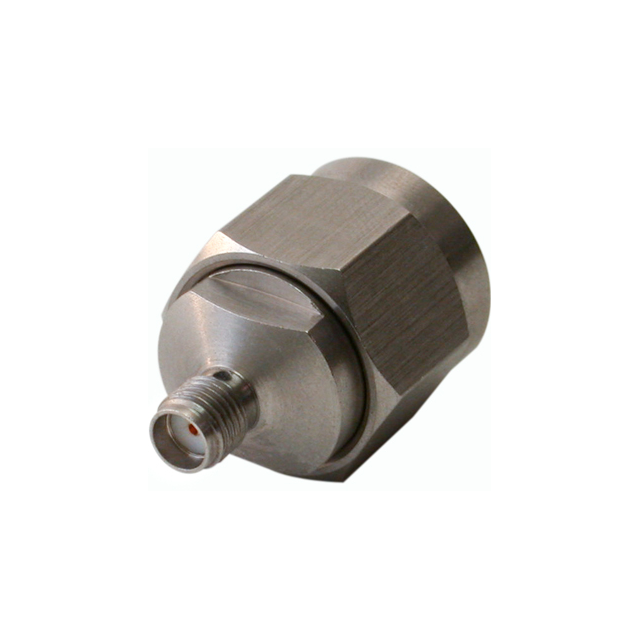

SMA FEMALE-N MALE; 18 GHZ

Search across all available documentation for this part.

Active

RF Industries

SMA FEMALE-N MALE; 18 GHZ

Technical Specifications

Parameters and characteristics for this part

Specification	P2RSA-3778

Adapter Type	Plug to Jack
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Conversion Type	Between Series
Convert From (Adapter End)	Female Socket, SMA Jack
Convert To (Adapter End)	Male Pin, N Plug
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Impedance	50 Ohms
Insertion Loss	0.2 dB
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

Part	Frequency - Max [Max]	Convert To (Adapter End)	Operating Temperature [Max]	Operating Temperature [Min]	Center Contact Material	Body Material	Adapter Type	Insertion Loss	Mounting Type	Center Contact Plating	Conversion Type	Impedance	Convert From (Adapter End)	Dielectric Material	Style
RF Industries P2RSA-3778	18 GHz	Male Pin N Plug	155 °C	-65 ░C	Beryllium Copper	Stainless Steel	Plug to Jack	0.2 dB	Free Hanging (In-Line)	Gold	Between Series	50 Ohms	Female Socket SMA Jack	Polytetrafluoroethylene (PTFE)	Straight

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector SMA Jack, Female Socket To N Plug, Male Pin 50 Ohms
