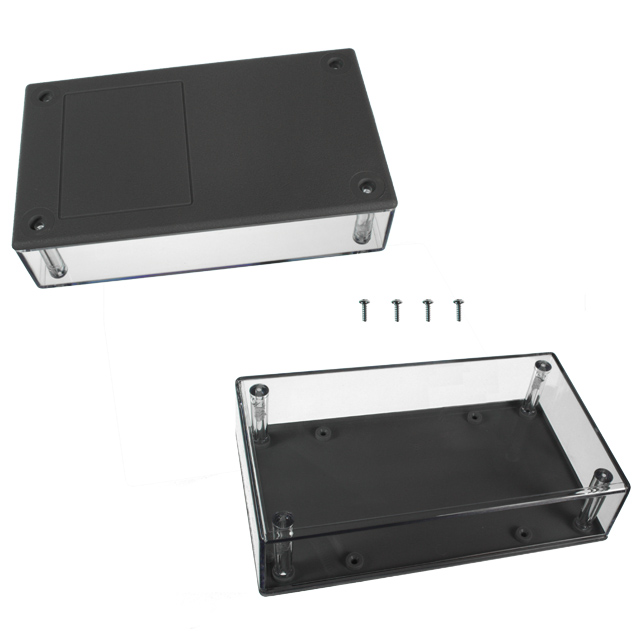

052C,GY

Active

Serpac

BOX PLASTIC 5.62"L X 3.25"W

Deep-Dive with AI

Search across all available documentation for this part.

052C,GY

Active

Serpac

BOX PLASTIC 5.62"L X 3.25"W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	052C,GY

Area (L x W)	18.3 in²
Area (L x W)	118 cm²
Color	Gray, Clear Cover/Door
Container Type	Box
Features	PCB Supports
Height [z]	35.56 mm
Height [z]	1.4 in
Material	Plastic, Polycarbonate
Ratings	IP40, NEMA 1
Size / Dimension [x]	142.75 mm
Size / Dimension [x]	5.62 in
Size / Dimension [y]	3.25 "
Size / Dimension [y]	82.55 mm
Thickness	2.54 mm
Thickness	0.1 in
Weight	99.79 g
Weight	0.22 lb

052 Series

Part	Weight	Weight	Thickness	Thickness	Material Flammability Rating	Height [z]	Height [z]	Material	Area (L x W)	Area (L x W)	Color	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Features	Container Type	Ratings
Serpac 052,BK	99.79 g	0.22 lb	2.54 mm	0.1 in	UL94 HB	35.56 mm	1.4 in	Plastic ABS	18.3 in²	118 cm²	Black	3.25 "	142.75 mm	82.55 mm	5.62 in	PCB Supports	Box	IP40 NEMA 1
Serpac 052C,BK	99.79 g	0.22 lb	2.54 mm	0.1 in		35.56 mm	1.4 in	Plastic Polycarbonate	18.3 in²	118 cm²	Black Clear Cover/Door	3.25 "	142.75 mm	82.55 mm	5.62 in	PCB Supports	Box	IP40 NEMA 1
Serpac 052W,AL	99.79 g	0.22 lb	2.54 mm	0.1 in	UL94 HB	35.56 mm	1.4 in	Plastic ABS	18.3 in²	118 cm²	Almond	3.25 "	142.75 mm	82.55 mm	5.62 in	PCB Supports Wall Mount	Box	IP40 NEMA 1
Serpac 052C,AL	99.79 g	0.22 lb	2.54 mm	0.1 in		35.56 mm	1.4 in	Plastic Polycarbonate	18.3 in²	118 cm²		3.25 "	142.75 mm	82.55 mm	5.62 in	PCB Supports	Box	IP40 NEMA 1
Serpac 052W,BK	99.79 g	0.22 lb	2.54 mm	0.1 in	UL94 HB	35.56 mm	1.4 in	Plastic ABS	18.3 in²	118 cm²	Black	3.25 "	142.75 mm	82.55 mm	5.62 in	PCB Supports Wall Mount	Box	IP40 NEMA 1
Serpac 052,GR	99.79 g	0.22 lb	2.54 mm	0.1 in	UL94 HB	35.56 mm	1.4 in	Plastic ABS	18.3 in²	118 cm²	Gray	3.25 "	142.75 mm	82.55 mm	5.62 in	PCB Supports	Box	IP40 NEMA 1
Serpac 052W,GY	99.79 g	0.22 lb	2.54 mm	0.1 in	UL94 HB	35.56 mm	1.4 in	Plastic ABS	18.3 in²	118 cm²	Gray	3.25 "	142.75 mm	82.55 mm	5.62 in	PCB Supports Wall Mount	Box	IP40 NEMA 1
Serpac 052C,GY	99.79 g	0.22 lb	2.54 mm	0.1 in		35.56 mm	1.4 in	Plastic Polycarbonate	18.3 in²	118 cm²	Clear Cover/Door Gray	3.25 "	142.75 mm	82.55 mm	5.62 in	PCB Supports	Box	IP40 NEMA 1
Serpac 052,AL	99.79 g	0.22 lb	2.54 mm	0.1 in	UL94 HB	35.56 mm	1.4 in	Plastic ABS	18.3 in²	118 cm²	Almond	3.25 "	142.75 mm	82.55 mm	5.62 in	PCB Supports	Box	IP40 NEMA 1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 11.99

Description

General part information

052 Series

Box Plastic, Polycarbonate Gray, Clear Cover/Door 5.620" L x 3.250" W (142.75mm x 82.55mm) X 1.400" (35.56mm)

Documents

Technical documentation and resources

No documents available
