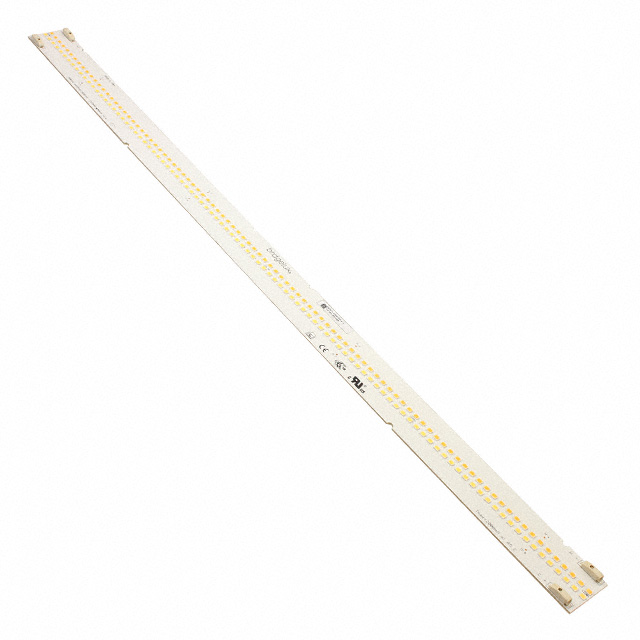

BXEB-TL-2750G-1000-A-13

Active

BRIDGELUX

LED MOD VESTA WHT LNR STRP 5000K

Search across all available documentation for this part.

Active

BRIDGELUX

LED MOD VESTA WHT LNR STRP 5000K

Technical Specifications

Parameters and characteristics for this part

Specification	BXEB-TL-2750G-1000-A-13

CCT (K)	5000 K, 2700 K
Color	White, Cool, White, Warm
Configuration	Linear Light Strip
CRI (Color Rendering Index)	90
Current - Max [Max]	1 A
Current - Test	500 mA
Height [z]	6.1 mm
Lens Type	Flat
Lumens/Watt @ Current - Test	129 lm/W
Lumens/Watt @ Current - Test	135 lm/W
Luminous Flux @ Current/Temperature	1676 lm, 1596 lm
Size / Dimension [x]	280 mm
Size / Dimension [y]	31 mm
Type	LED Module
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	24.8 V

Part	Voltage - Forward (Vf) (Typ)	CRI (Color Rendering Index)	Type	CCT (K)	Lens Type	Height [z]	Viewing Angle	Configuration	Lumens/Watt @ Current - Test	Lumens/Watt @ Current - Test	Color	Luminous Flux @ Current/Temperature	Current - Test	Size / Dimension [y]	Size / Dimension [x]	Current - Max [Max]
BRIDGELUX BXEB-TL-2750G-1000-A-13	24.8 V	90	LED Module	2700 K 5000 K	Flat	6.1 mm	120 °	Linear Light Strip	129 lm/W	135 lm/W	White Cool White Warm	1596 lm 1676 lm	500 mA	31 mm	280 mm	1 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting COBs Engines Modules LED Module Vesta™ White, Warm / White, Cool Linear Light Strip
