TLC7705MUB
ActiveSINGLE POWER SVS (5V) W/PGMMABLE TIME DELAY & PUSH-PULL OUTPUTS
Deep-Dive with AI
Search across all available documentation for this part.
TLC7705MUB
ActiveSINGLE POWER SVS (5V) W/PGMMABLE TIME DELAY & PUSH-PULL OUTPUTS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TLC7705MUB |
|---|---|
| Mounting Type | Surface Mount |
| Number of Voltages Monitored | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Output | Totem Pole, Push-Pull |

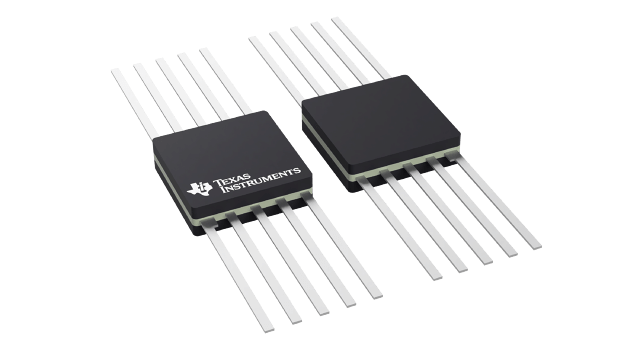

| Package / Case | 10-CDFF |
| Reset | Active High/Active Low |
| Reset Timeout | 1.1 ms |
| Supplier Device Package | 10-CFP |
| Type | Simple Reset/Power-On Reset |
| Voltage - Threshold | 4.55 V |
5962-9751301 Series
Single Power SVS (5v) W/Pgmmable Time Delay & Push-Pull Outputs
| Part | Grade | Output | Voltage - Threshold | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Package / Case | Package / Case | Package / Case | Supplier Device Package | Number of Voltages Monitored | Type | Reset | Reset Timeout | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments | Military | Push-Pull Totem Pole | 4.55 V | 125 °C | -55 °C | Through Hole | 7.62 mm | 0.3 in | 8-CDIP | 8-CDIP | 1 | Simple Reset/Power-On Reset | Active High/Active Low | 1.1 ms | MIL-PRF-38535L |
Texas Instruments | Push-Pull Totem Pole | 4.55 V | 125 °C | -55 °C | Surface Mount | 10-CDFF | 10-CFP | 1 | Simple Reset/Power-On Reset | Active High/Active Low | 1.1 ms | ||||
Texas Instruments | Push-Pull Totem Pole | 4.55 V | 125 °C | -55 °C | Surface Mount | 20-CLCC | 20-LCCC (8.89x8.89) | 1 | Power Supply Monitor | Active High/Active Low | 1.1 ms |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Texas Instruments | TUBE | 1 | $ 48.61 | |
| 100 | $ 42.46 | |||
| 250 | $ 32.74 | |||
| 1000 | $ 29.28 | |||
Description
General part information
5962-9751301 Series
The TLC77xx family of micropower supply voltage supervisors provide reset control, primarily in microcomputer and microprocessor systems.
During power-on,RESETis asserted when VDDreaches 1 V. After minimum VDD(≥ 2 V) is established, the circuit monitors SENSE voltage and keeps the reset outputs active as long as SENSE voltage (VI(SENSE)) remains below the threshold voltage. An internal timer delays return of the output to the inactive state to ensure proper system reset. The delay time, td, is determined by an external capacitor:
td= 2.1 × 104× CT
