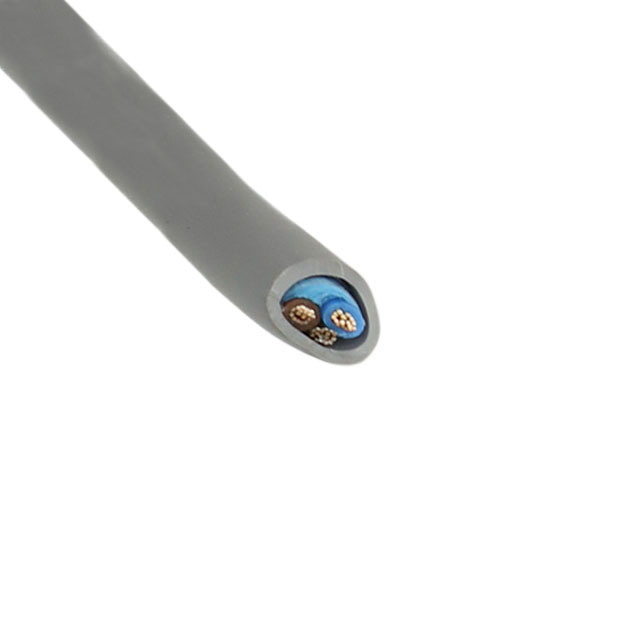

M4692 SL005

Active

ALPHA WIRE

CABLE 2CON 18AWG SLATE SHLD 100'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 2CON 18AWG SLATE SHLD 100'

Technical Specifications

Parameters and characteristics for this part

Specification	M4692 SL005

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	16
Conductor Strand [custom]	30 AWG
Features	Rip Cord, Drain Wire
Jacket (Insulation) Diameter [diameter]	5.82 mm
Jacket (Insulation) Diameter [diameter]	0.229 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Slate
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	2
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	UL Style 2464
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Voltage	300 V
Wire Gauge	18 AWG

Part	Conductor Material	Voltage	Features	Cable Type	Jacket Color	Number of Conductors	Jacket (Insulation) Material	Shield Type	Length	Length	Conductor Strand [custom]	Conductor Strand [custom]	Shield Material	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Insulation	Wire Gauge	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Coverage	Ratings	Length [x]	Length [x]
ALPHA WIRE M4692 SL199	Copper Tinned	300 V	Drain Wire Rip Cord	Multi-Conductor	Slate	2	Poly-Vinyl Chloride (PVC)	Foil	1000 ft	304.8 m	16	30 AWG	Aluminum	-20 C	80 C	Poly-Vinyl Chloride (PVC)	18 AWG	5.82 mm	0.229 in	100 %	UL Style 2464
ALPHA WIRE M4692 SL005	Copper Tinned	300 V	Drain Wire Rip Cord	Multi-Conductor	Slate	2	Poly-Vinyl Chloride (PVC)	Foil			16	30 AWG	Aluminum	-20 C	80 C	Poly-Vinyl Chloride (PVC)	18 AWG	5.82 mm	0.229 in	100 %	UL Style 2464	30.5 m	100 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Conductor Multi-Conductor Cable Slate 18 AWG Foil 100.0' (30.5m)
