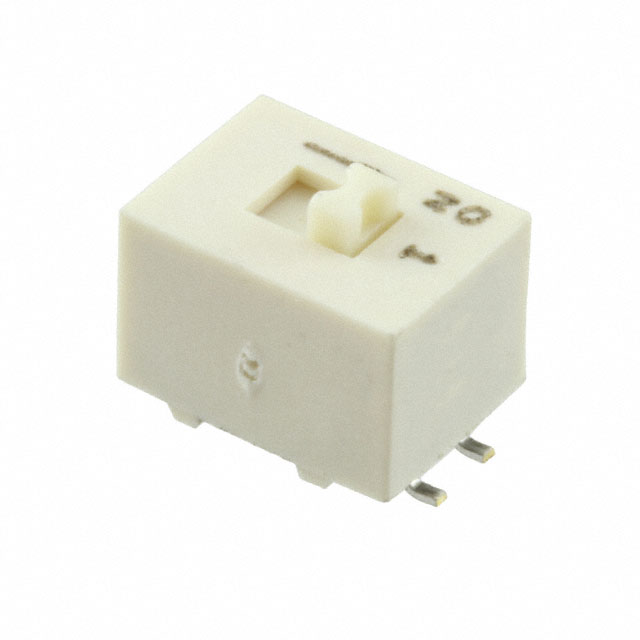

78HF01GWRT
ActiveGrayhill Inc.
SWITCH SLIDE DIP DPST 0.15A 30V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
78HF01GWRT
ActiveGrayhill Inc.
SWITCH SLIDE DIP DPST 0.15A 30V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 78HF01GWRT |
|---|---|
| Actuator Level | Raised |
| Actuator Type | Slide (Standard) |
| Body Material | Thermoplastic |
| Circuit | DPST |
| Contact Finish | Gold |
| Contact Material | Copper Alloy |
| Electrical Life | 2000 Steps |
| Height Above Board | 8.3 mm |
| Height Above Board | 0.327 in |
| Length | 7.11 mm |
| Length | 0.28 " |
| Mechanical Life | 2000 Cycles |
| Mounting Type | Surface Mount |
| Number of Positions | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch | Full |
| Pitch [x] | 0.1 in |
| Pitch [x] | 2.54 mm |
| Termination Style | Gull Wing |
| Voltage Rating | 30 VDC |
| Washable | False |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 6.40 | |
| 10 | $ 5.18 | |||
| 25 | $ 4.76 | |||
| 100 | $ 4.18 | |||
| 250 | $ 3.83 | |||
| Digi-Reel® | 1 | $ 6.40 | ||
| 10 | $ 5.18 | |||
| 25 | $ 4.76 | |||
| 100 | $ 4.18 | |||
| 250 | $ 3.83 | |||
| Tape & Reel (TR) | 500 | $ 3.58 | ||
| 1000 | $ 3.34 | |||
| 1500 | $ 3.21 | |||
| 2500 | $ 3.05 | |||
Description
General part information
78HF01 Series
Dip Switch DPST 1 Position Surface Mount Slide (Standard) Actuator 150mA 30VDC
