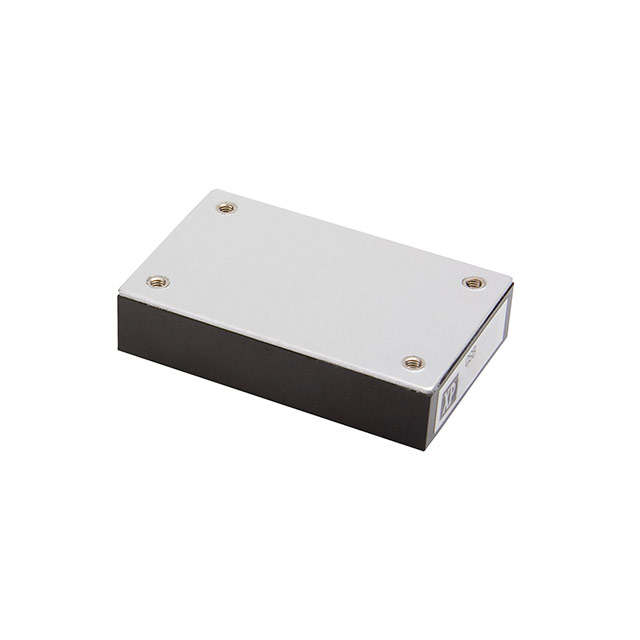

QSB10048S3V3

Active

XP POWER

ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, QUARTER BRICK, 4:1, 100 W, 1 OUTPUT, 3.3 V

Search across all available documentation for this part.

Active

XP POWER

ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, QUARTER BRICK, 4:1, 100 W, 1 OUTPUT, 3.3 V

Technical Specifications

Parameters and characteristics for this part

Part	Type	Power (Watts)	Features	Voltage - Output 1	Efficiency	Voltage - Input (Min) [Min]	Number of Outputs	Control Features	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max) [Max]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Mounting Type	Applications	Package / Case	Voltage - Isolation	Voltage - Input (Max) [Max]
XP POWER QSB10048S3V3	Isolated Module	100 W	OCP OTP OVP Remote On/Off SCP	3.3 V	88 %	18 V	1	Active High Enable	100 °C	-40 °C	30 A	57.9 mm	2.28 in	1.45 in	12.7 mm	36.8 mm	0.5 in	Through Hole	ITE (Commercial)	8-DIP Module	1.5 kV	75 V
XP POWER QSB10048S05	Isolated Module	100 W	OCP OTP OVP Remote On/Off SCP	5 V	88 %	18 V	1	Active High Enable	100 °C	-40 °C	20 A	57.9 mm	2.28 in	1.45 in	12.7 mm	36.8 mm	0.5 in	Through Hole	ITE (Commercial)	8-DIP Module	1.5 kV	75 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module DC DC Converter 1 Output 3.3V 30A 18V - 75V Input
