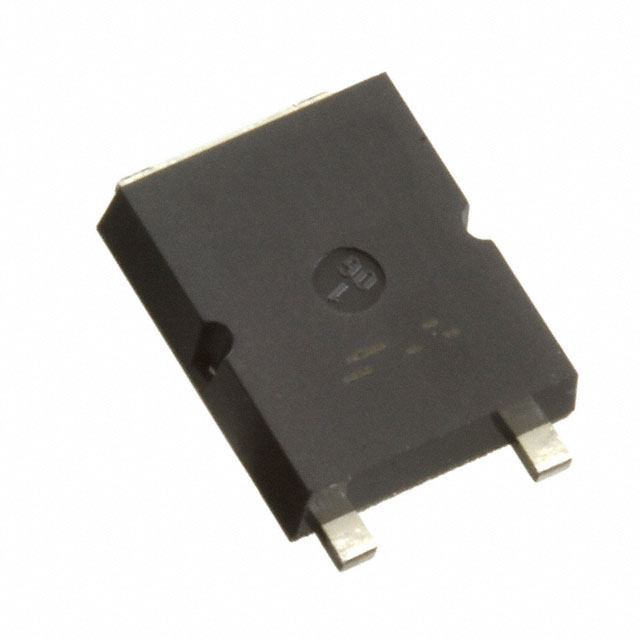

RSY200N05TL

Obsolete

Rohm Semiconductor

MOSFET N-CH 45V 20A TCPT3

Search across all available documentation for this part.

Obsolete

Rohm Semiconductor

MOSFET N-CH 45V 20A TCPT3

Technical Specifications

Parameters and characteristics for this part

Specification	RSY200N05TL

Current - Continuous Drain (Id) @ 25°C	20 A
Drain to Source Voltage (Vdss)	45 V
Drive Voltage (Max Rds On, Min Rds On)	10 V, 4.5 V
FET Type	N-Channel
Mounting Type	Surface Mount
Operating Temperature	150 °C
Power Dissipation (Max) [Max]	20 W
Supplier Device Package	TCPT3
Technology	MOSFET (Metal Oxide)
Vgs (Max)	20 V

Part	Operating Temperature	FET Type	Mounting Type	Supplier Device Package	Drive Voltage (Max Rds On, Min Rds On)	Drain to Source Voltage (Vdss)	Power Dissipation (Max) [Max]	Vgs (Max)	Technology	Current - Continuous Drain (Id) @ 25°C
Rohm Semiconductor RSY200N05TL	150 °C	N-Channel	Surface Mount	TCPT3	4.5 V 10 V	45 V	20 W	20 V	MOSFET (Metal Oxide)	20 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

N-Channel 45 V 20A (Ta) 20W (Ta) Surface Mount TCPT3

Technical documentation and resources

No documents available
