RDC2072D05

Active

XP POWER

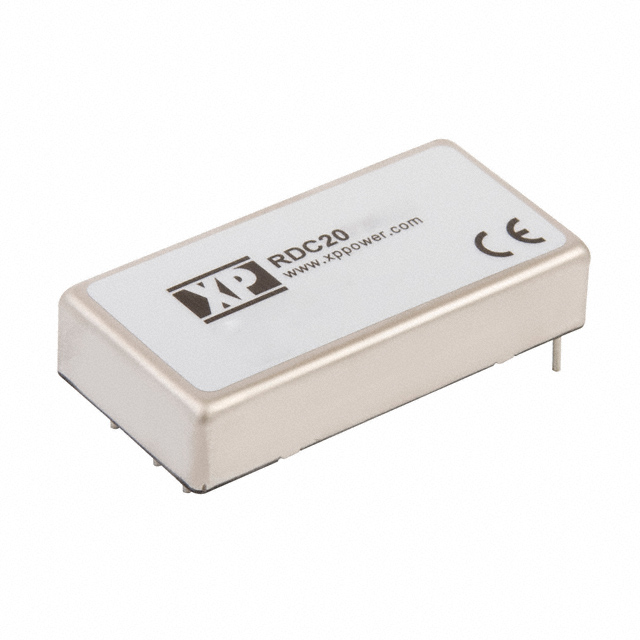

DC DC CONVERTER +/-5V 20W

Search across all available documentation for this part.

Active

XP POWER

DC DC CONVERTER +/-5V 20W

Technical Specifications

Parameters and characteristics for this part

Specification	RDC2072D05

Applications	Railway
Control Features	Active High, Enable
Current - Output (Max) [Max]	2 A
Current - Output (Max) [Max]	2 A
Efficiency	87 %
Features	OCP, UVLO, OTP, Remote On/Off, SCP, OVP
Mounting Type	Through Hole
Number of Outputs	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	6-DIP Module
Power (Watts)	20 W
Size / Dimension [x]	2 in
Size / Dimension [x]	50.8 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [z]	0.42 in
Size / Dimension [z]	10.6 mm
Standard Number	62368-1
Type	Isolated Module
Voltage - Input (Max) [Max]	140 V
Voltage - Input (Min) [Min]	36 V
Voltage - Isolation	1.5 kV
Voltage - Output 1	5 V
Voltage - Output 2	-5 V

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Control Features	Number of Outputs	Efficiency	Standard Number	Power (Watts)	Voltage - Output 1	Operating Temperature [Max]	Operating Temperature [Min]	Type	Applications	Features	Package / Case	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Voltage - Isolation	Voltage - Output 2	Current - Output (Max) [Max]	Current - Output (Max)	Current - Output (Max)
XP POWER RDC2072S15	2 in	25.4 mm	0.42 in	10.6 mm	50.8 mm	25.4 mm	Through Hole	Active High Enable	1	87 %	62368-1	20 W	15 V	85 °C	-40 °C	Isolated Module	Railway	OCP OTP OVP Remote On/Off SCP UVLO	6-DIP Module	36 V	140 V	1.33 A	1.5 kV
XP POWER RDC2072S05	2 in	25.4 mm	0.42 in	10.6 mm	50.8 mm	25.4 mm	Through Hole	Active High Enable	1	88.5 %	62368-1	20 W	5 V	85 °C	-40 °C	Isolated Module	Railway	OCP OTP OVP Remote On/Off SCP UVLO	6-DIP Module	36 V	140 V	4 A	1.5 kV
XP POWER RDC2072D05	2 in	25.4 mm	0.42 in	10.6 mm	50.8 mm	25.4 mm	Through Hole	Active High Enable	2	87 %	62368-1	20 W	5 V	85 °C	-40 °C	Isolated Module	Railway	OCP OTP OVP Remote On/Off SCP UVLO	6-DIP Module	36 V	140 V	2 A	1.5 kV	-5 V	2 A
XP POWER RDC2072D12	2 in	25.4 mm	0.42 in	10.6 mm	50.8 mm	25.4 mm	Through Hole	Active High Enable	2	85.5 %	62368-1	20 W	12 V	85 °C	-40 °C	Isolated Module	Railway	OCP OTP OVP Remote On/Off SCP UVLO	6-DIP Module	36 V	140 V		1.5 kV	-12 V		830 mA	830 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	10	$ 103.40
