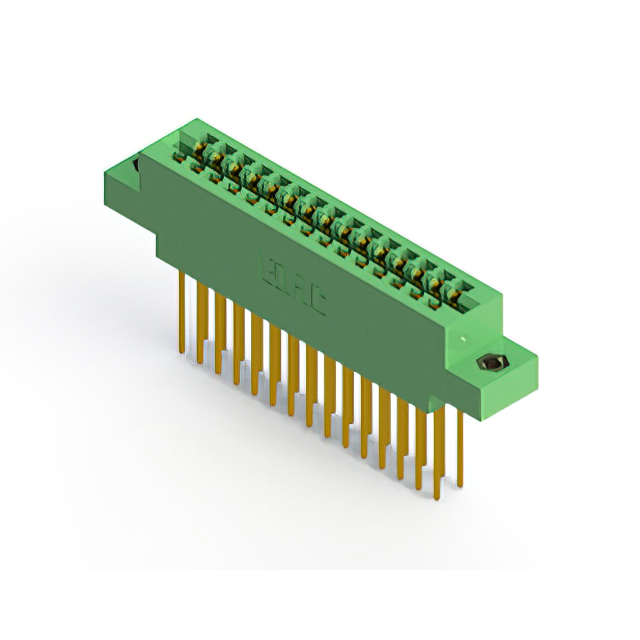

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 30 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Search across all available documentation for this part.
317-030-542-807
ActiveEDAC Inc.
CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 30 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 317-030-542-807 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | M3, Threaded Insert, Top Mount Opening |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions | 30 |
| Number of Positions/Bay/Row [custom] | 15 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -65 ░C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Wire Wrap |
317-030 Series
| Part | Contact Type | Contact Finish Thickness | Contact Finish Thickness | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Color | Pitch [x] | Pitch [x] | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish | Termination | Number of Positions | Material - Insulation | Number of Positions/Bay/Row [custom] | Read Out | Gender | Contact Material | Card Type | Number of Rows | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Cantilever | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 0.156 in | 3.96 mm | Through Hole | 125 °C | -65 ░C | Gold | Wire Wrap | 60 | Diallyl Phthalate (DAP) | 30 | Single | Female | Copper Alloy | Non Specified - Dual Edge | 2 | |||
EDAC Inc. | Cantilever | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 0.156 in | 3.96 mm | Through Hole | 125 °C | -65 ░C | Gold | Wire Wrap | 60 | Diallyl Phthalate (DAP) | 30 | Single | Female | Copper Alloy | Non Specified - Dual Edge | 2 | 0.156 in | Top Mount Opening Unthreaded | 3.96 mm |
EDAC Inc. | Cantilever | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 0.156 in | 3.96 mm | Through Hole | 125 °C | -65 ░C | Gold | Wire Wrap | 30 | Diallyl Phthalate (DAP) | 15 | Dual | Female | Copper Alloy | Non Specified - Dual Edge | 2 | |||
EDAC Inc. | Cantilever | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 0.156 in | 3.96 mm | Through Hole | 125 °C | -65 ░C | Gold | Wire Wrap | 60 | Diallyl Phthalate (DAP) | 30 | Single | Female | Copper Alloy | Non Specified - Dual Edge | 2 | |||
EDAC Inc. | Cantilever | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 0.156 in | 3.96 mm | Through Hole | 125 °C | -65 ░C | Gold | Wire Wrap | 60 | Diallyl Phthalate (DAP) | 30 | Single | Female | Copper Alloy | Non Specified - Dual Edge | 2 | 4-40 Threaded Insert Top Mount Opening | ||
EDAC Inc. | Cantilever | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 0.156 in | 3.96 mm | Through Hole | 125 °C | -65 ░C | Gold | Wire Wrap | 60 | Diallyl Phthalate (DAP) | 30 | Single | Female | Copper Alloy | Non Specified - Dual Edge | 2 | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm |
EDAC Inc. | Cantilever | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 0.156 in | 3.96 mm | Through Hole | 125 °C | -65 ░C | Gold | Wire Wrap | 30 | Diallyl Phthalate (DAP) | 15 | Dual | Female | Copper Alloy | Non Specified - Dual Edge | 2 | |||
EDAC Inc. | Cantilever | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 0.156 in | 3.96 mm | Through Hole | 125 °C | -65 ░C | Gold | Wire Wrap | 30 | Diallyl Phthalate (DAP) | 15 | Dual | Female | Copper Alloy | Non Specified - Dual Edge | 2 | |||
EDAC Inc. | Cantilever | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 0.156 in | 3.96 mm | Through Hole | 125 °C | -65 ░C | Gold | Wire Wrap | 30 | Diallyl Phthalate (DAP) | 15 | Dual | Female | Copper Alloy | Non Specified - Dual Edge | 2 | M3 Threaded Insert Top Mount Opening | ||
EDAC Inc. | Cantilever | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 0.156 in | 3.96 mm | Through Hole | 125 °C | -65 ░C | Gold | Wire Wrap | 30 | Diallyl Phthalate (DAP) | 15 | Dual | Female | Copper Alloy | Non Specified - Dual Edge | 2 | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
317-030 Series
30 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
