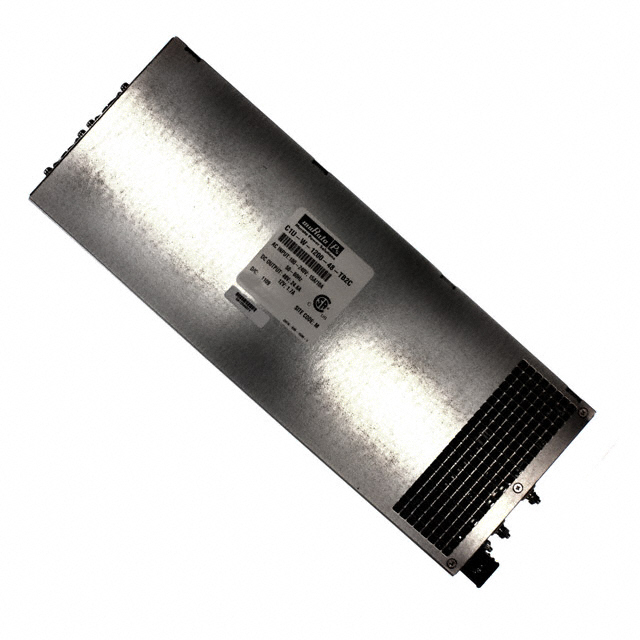

C1U-W-1200-48-TB2C

Obsolete

Murata Power Solutions Inc.

AC/DC CONVERTER 48V 1200W

Search across all available documentation for this part.

Obsolete

Murata Power Solutions Inc.

AC/DC CONVERTER 48V 1200W

Technical Specifications

Parameters and characteristics for this part

Specification	C1U-W-1200-48-TB2C

Applications	ITE (Commercial)
Approval Agency	cCSAus, TUV
Current - Output 1	24.6 A
Efficiency	91 %
Features	Standby Output, Remote Sense, Load Sharing, Remote On/Off, Universal Input
Minimum Load Required	True
Mounting Type	Rack Mount
Number of Outputs	1
Power (Watts)	1200 W
Size / Dimension [x]	360.7 mm
Size / Dimension [x]	14.2 in
Size / Dimension [y]	5.5 in
Size / Dimension [y]	139.7 mm
Size / Dimension [z]	1.67 in
Size / Dimension [z]	42.4 mm
Type	Front End
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Isolation	3000 V
Voltage - Output 1	48 V

Part	Efficiency	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Features	Power (Watts)	Type	Voltage - Output 1	Applications	Voltage - Isolation	Voltage - Input [Min]	Voltage - Input [Max]	Approval Agency	Current - Output 1	Number of Outputs	Mounting Type
Murata Power Solutions Inc. C1U-W-1200-12-TC2C	90.6 %	5.5 in	139.7 mm	1.67 in	360.7 mm	42.4 mm	14.2 in	Load Sharing PFC Remote Sense Standby Output Universal Input	1200 W	Front End	12 V	ITE (Commercial)	3000 V	90 VAC	264 VAC	cCSAus TUV	98.3 A	1	Rack Mount
Murata Power Solutions Inc. C1U-W-1200-48-TB2C	91 %	5.5 in	139.7 mm	1.67 in	360.7 mm	42.4 mm	14.2 in	Load Sharing Remote On/Off Remote Sense Standby Output Universal Input	1200 W	Front End	48 V	ITE (Commercial)	3000 V	90 VAC	264 VAC	cCSAus TUV	24.6 A	1	Rack Mount
Murata Power Solutions Inc. C1U-W-1200-12-TC1C	90.6 %	5.5 in	139.7 mm	1.67 in	360.7 mm	42.4 mm	14.2 in	Load Sharing PFC Remote Sense Standby Output Universal Input	1200 W	Front End	12 V	ITE (Commercial)	3000 V	90 VAC	264 VAC	cCSAus TUV	98.3 A	1	Rack Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Front End AC DC Converters 1 Output 48V 90 ~ 264 VAC Input
