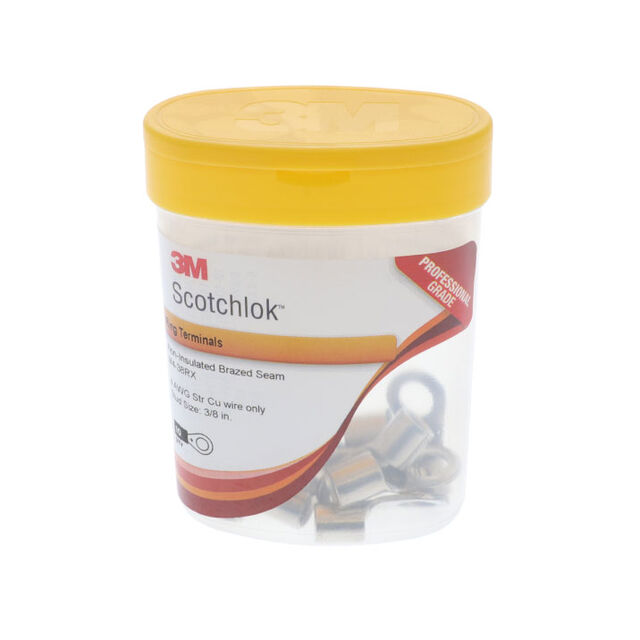

M4-38RX-BOTTLE
Active3M (TC)
CONN RING CIRC 4AWG #3/8 10PC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
M4-38RX-BOTTLE
Active3M (TC)
CONN RING CIRC 4AWG #3/8 10PC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | M4-38RX-BOTTLE |
|---|---|
| Contact Finish | Tin |
| Contact Material | ETP, Copper |
| Features | Brazed Seam |
| Insulation | Non-Insulated |
| Length - Overall [x] | 34.04 mm |
| Length - Overall [x] | 1.34 in |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 3/8 Stud |
| Terminal Type | Circular |
| Termination | Crimp |
| Thickness | 1.91 mm |
| Thickness | 0.075 in |
| Width - Outer Edges [x] | 0.68 in |
| Width - Outer Edges [x] | 17.27 mm |
| Wire Gauge | 4 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 42.75 | |
| 10 | $ 37.44 | |||
| 25 | $ 35.82 | |||
| 50 | $ 34.66 | |||
| 100 | $ 33.51 | |||
| 250 | $ 31.66 | |||
Description
General part information
M4 Series
Ring Terminal Connector 3/8 Stud Circular 4 AWG Crimp
Documents
Technical documentation and resources
