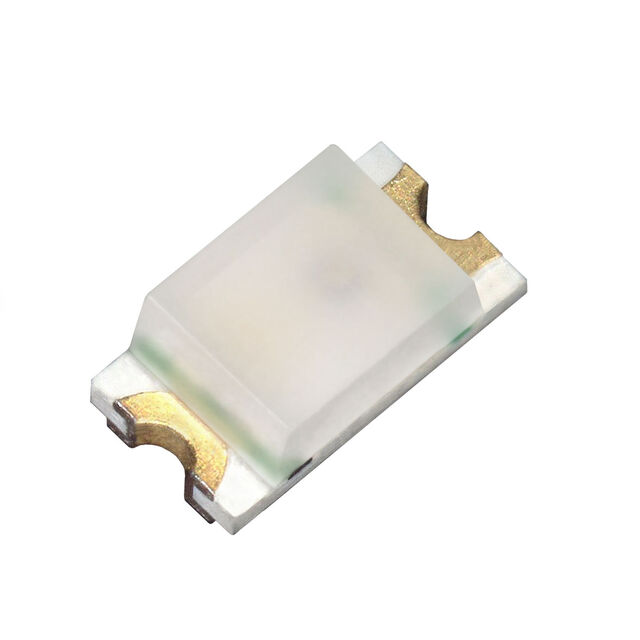

SMLD12BN1WT86C
ActiveRohm Semiconductor
AUTOMOTIVE, LONG LIFE TYPE, INDUSTRY STANDARD 1608 SIZE, BLUE CHIP LED
Deep-Dive with AI
Search across all available documentation for this part.
SMLD12BN1WT86C
ActiveRohm Semiconductor
AUTOMOTIVE, LONG LIFE TYPE, INDUSTRY STANDARD 1608 SIZE, BLUE CHIP LED
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SMLD12BN1WT86C |
|---|---|
| Color | Blue |
| Current - Test | 5 mA |
| Grade | Automotive |
| Height (Max) [Max] [z] | 0.65 mm |
| Lens Color | White |
| Lens Size [x] | 1.2 mm |
| Lens Size [y] | 0.8 mm |
| Lens Style | Rectangle with Flat Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 40 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1608 Metric) |
| Qualification | AEC-Q102 |
| Size / Dimension [x] | 1.6 mm |
| Size / Dimension [y] | 0.65 mm |
| Voltage - Forward (Vf) (Typ) | 2.9 V |
| Wavelength - Dominant | 470 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.83 | |
| 10 | $ 0.52 | |||
| 25 | $ 0.43 | |||
| 100 | $ 0.33 | |||
| 250 | $ 0.29 | |||
| 500 | $ 0.26 | |||
| 1000 | $ 0.23 | |||
| Digi-Reel® | 1 | $ 0.83 | ||
| 10 | $ 0.52 | |||
| 25 | $ 0.43 | |||
| 100 | $ 0.33 | |||
| 250 | $ 0.29 | |||
| 500 | $ 0.26 | |||
| 1000 | $ 0.23 | |||
| Tape & Reel (TR) | 3000 | $ 0.20 | ||
| 6000 | $ 0.19 | |||
| 9000 | $ 0.18 | |||
| 15000 | $ 0.17 | |||
| 21000 | $ 0.17 | |||
| 30000 | $ 0.16 | |||
| Newark | Each (Supplied on Cut Tape) | 1 | $ 0.61 | |
| 10 | $ 0.42 | |||
| 25 | $ 0.38 | |||
| 50 | $ 0.34 | |||
| 100 | $ 0.30 | |||
| 250 | $ 0.28 | |||
| 500 | $ 0.25 | |||
| 1000 | $ 0.23 | |||
Description
General part information
SMLD12BN1W(C) Series
SML-D1(C) series is an automotive grade small surface-mount type chip LED compliant with AEC-Q102. It is a mass-produced package with a wide range of color and luminous intensity lineup and a proven market track record.
