N3372-6303RB

Active

3M (TC)

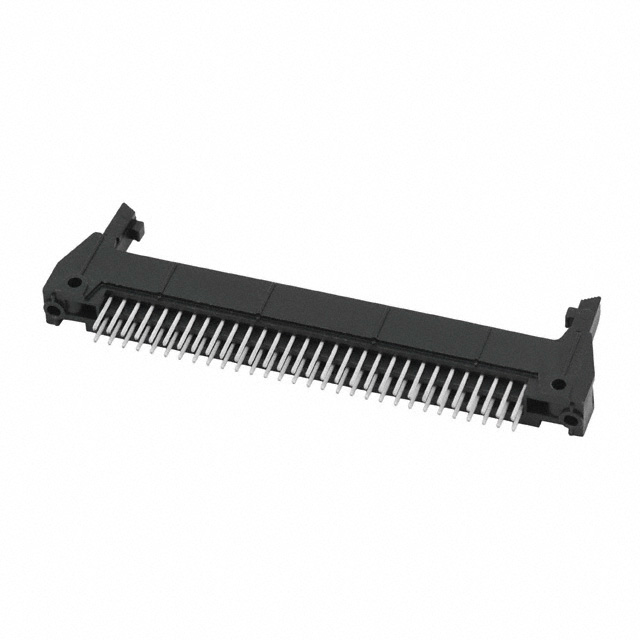

PIN HEADER, WIRE-TO-BOARD, 2.54 MM, 2 ROWS, 60 CONTACTS, THROUGH HOLE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Interconnect Catalog +1

N3372-6303RB

Active

3M (TC)

PIN HEADER, WIRE-TO-BOARD, 2.54 MM, 2 ROWS, 60 CONTACTS, THROUGH HOLE

Deep-Dive with AI

DocumentsDatasheet Interconnect Catalog +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	N3372-6303RB

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Finish Thickness - Post	200 µin
Contact Finish Thickness - Post	5.08 µm
Contact Length - Mating	6.1 mm
Contact Length - Mating [x]	0.24 in
Contact Length - Post	3.94 mm
Contact Length - Post	0.155 "
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	1.75 A
Fastening Type	Latch Lock/Eject Hooks, Long
Insulation Color	Black
Insulation Height	17.27 mm
Insulation Height	0.68 in
Insulation Material	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	60
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Overall Contact Length	0.695 in
Overall Contact Length	17.65 mm
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder

N3372 Series

Part	Mounting Type	Number of Positions Loaded	Number of Rows	Insulation Material	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Height	Insulation Height	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Mating	Contact Length - Mating [x]	Contact Finish - Post	Overall Contact Length	Overall Contact Length	Connector Type	Termination	Fastening Type	Shrouding	Current Rating (Amps)	Contact Type	Contact Finish - Mating	Contact Shape	Style	Contact Length - Post	Contact Length - Post	Material Flammability Rating	Insulation Color	Pitch - Mating	Pitch - Mating
3M (TC) N3372-6303RB	Through Hole	All	2	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Copper Alloy	30 Áin	0.76 Ám	60	105 ░C	-55 °C	2.54 mm	0.1 in	17.27 mm	0.68 in	200 µin	5.08 µm	6.1 mm	0.24 in	Tin	0.695 in	17.65 mm	Header	Solder	Latch Lock/Eject Hooks Long	Shrouded - 4 Wall	1.75 A	Male Pin	Gold	Square	Board to Board Cable	3.94 mm	0.155 "	UL94 V-0	Black	0.1 in	2.54 mm
3M (TC) N3372-L303RB	Through Hole Right Angle	All	2	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Copper Alloy	30 Áin	0.76 Ám	60	105 ░C	-55 °C	2.54 mm	0.1 in	16.76 mm	0.66 in	200 µin	5.08 µm	6.1 mm	0.24 in	Tin			Header Stackable (2)	Solder	Latch Lock/Eject Hooks Long	Shrouded - 4 Wall		Male Pin	Gold	Square	Board to Board Cable	3.94 mm	0.155 "	UL94 V-0	Black	0.1 in	2.54 mm
3M (TC) N3372-L302RB	Through Hole Right Angle	All	2	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Copper Alloy	30 Áin	0.76 Ám	60	105 ░C	-55 °C	2.54 mm	0.1 in	16.76 mm	0.66 in	200 µin	5.08 µm	6.1 mm	0.24 in	Tin			Header Stackable (2)	Solder	Latch Lock/Eject Hooks Long	Shrouded - 4 Wall		Male Pin	Gold	Square	Board to Board Cable	2.84 mm	0.112 in	UL94 V-0	Black	0.1 in	2.54 mm
3M (TC) N3372-2303RB	Through Hole	All	2	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled	Copper Alloy	30 Áin	0.76 Ám	60	105 ░C	-55 °C	2.54 mm	0.1 in	17.27 mm	0.68 in	200 µin	5.08 µm	6.1 mm	0.24 in	Tin	0.695 in	17.65 mm	Header	Solder	Latch Lock/Eject Hooks Long	Shrouded - 3 Wall	1.75 A	Male Pin	Gold	Square	Board to Board Cable	3.94 mm	0.155 "	UL94 V-0	Black	0.1 in	2.54 mm
3M (TC) N3372-6302RB	Through Hole	All	2	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Copper Alloy	30 Áin	0.76 Ám	60	105 ░C	-55 °C	2.54 mm	0.1 in	17.27 mm	0.68 in	200 µin	5.08 µm	6.1 mm	0.24 in	Tin	0.652 in	16.56 mm	Header	Solder	Latch Lock/Eject Hooks Long	Shrouded - 4 Wall	1.75 A	Male Pin	Gold	Square	Board to Board Cable	2.84 mm	0.112 in	UL94 V-0	Black	0.1 in	2.54 mm
3M (TC) N3372-5002RB	Through Hole Right Angle	All	2	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Copper Alloy	30 Áin	0.76 Ám	60	105 ░C	-55 °C	2.54 mm	0.1 in	8.64 mm	0.34 in	200 µin	5.08 µm	6.1 mm	0.24 in	Tin			Header	Solder	Push-Pull	Shrouded - 4 Wall	1.75 A	Male Pin	Gold	Square	Board to Board Cable	2.84 mm	0.112 in	UL94 V-0	Black	0.1 in	2.54 mm
3M (TC) N3372-1303RB	Through Hole Right Angle	All	2	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Copper Alloy	30 Áin	0.76 Ám	60	105 ░C	-55 °C	2.54 mm	0.1 in	7.87 mm	0.31 in	200 µin	5.08 µm	6.1 mm	0.24 in	Tin			Header	Solder	Latch Lock/Eject Hooks Long	Shrouded - 3 Wall	1.75 A	Male Pin	Gold	Square	Board to Board Cable	3.94 mm	0.155 "	UL94 V-0	Black	0.1 in	2.54 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 9.85
		10	$ 8.37
		150	$ 6.92
		600	$ 6.27
		1050	$ 6.03
Newark	Each	250	$ 8.26
		500	$ 7.79
		1000	$ 6.86

Description

General part information

N3372 Series

Connector Header Through Hole 60 position 0.100" (2.54mm)
