ED130/12DS

Active

On Shore Technology Inc.

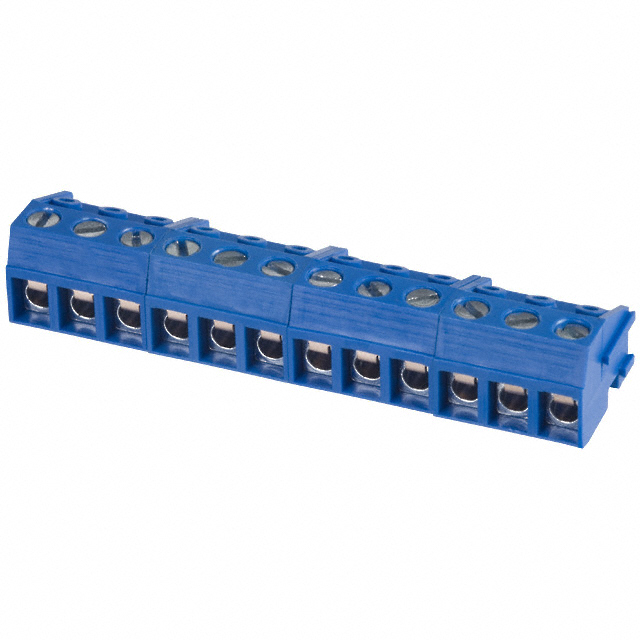

TERM BLOCK PLUG 12POS 90DEG 5MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet ED Part Number Breakdown

ED130/12DS

Active

On Shore Technology Inc.

TERM BLOCK PLUG 12POS 90DEG 5MM

Deep-Dive with AI

DocumentsDatasheet ED Part Number Breakdown

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ED130/12DS

Color	Blue
Contact Material	Copper Beryllium
Current - UL	10 A
Features	Interlocking (Side)
Housing Material	Polyamide (PA), Nylon
Insulation Height	0.425 in
Insulation Height	10.8 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Number of Positions	12
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-30 ░C
Pitch [x]	5 mm
Pitch [x]	0.197 in
Plug Wire Entry	90 °
Positions Per Level	12
Screw Size	M2.6
Termination Style	Screw
Torque - Screw	0.4 Nm
Torque - Screw	3.5 Lb-In
Type	Plug for Unshrouded Header
Voltage - UL	300 V
Wire Gauge or Range - AWG [Max]	22 AWG
Wire Gauge or Range - AWG [Min]	14 AWG
Wire Gauge or Range - mm²	1.5 mm²
Wire Strip Length	6 mm

ED130 Series

Part	Housing Material	Color	Plug Wire Entry	Screw Size	Termination Style	Insulation Height	Insulation Height	Pitch [x]	Pitch [x]	Positions Per Level	Material Flammability Rating	Wire Strip Length	Contact Material	Type	Voltage - UL	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Number of Levels	Wire Gauge or Range - mm˛	Mounting Type	Current - UL	Torque - Screw	Torque - Screw	Operating Temperature [Min]	Operating Temperature [Max]	Features	Number of Positions	Wire Gauge or Range - mm²
On Shore Technology Inc. ED130/5DS	Polyamide (PA) Nylon	Blue	90 °	M2.6	Screw	0.425 in	10.8 mm	5 mm	0.197 in	5	UL94 V-0	6 mm	Copper Beryllium	Plug for Unshrouded Header	300 V	14 AWG	22 AWG	1	1.5 mm˛	Free Hanging (In-Line)	10 A	0.4 Nm	3.5 Lb-In	-30 ░C	105 ░C	Interlocking (Side)
On Shore Technology Inc. ED130/10DS	Polyamide (PA) Nylon	Blue	90 °	M2.6	Screw	0.425 in	10.8 mm	5 mm	0.197 in	10	UL94 V-0	6 mm	Copper Beryllium	Plug for Unshrouded Header	300 V	14 AWG	22 AWG	1	1.5 mm˛	Free Hanging (In-Line)	10 A	0.4 Nm	3.5 Lb-In	-30 ░C	105 ░C	Interlocking (Side)	10
On Shore Technology Inc. ED130/7DS	Polyamide (PA) Nylon	Blue	90 °	M2.6	Screw	0.425 in	10.8 mm	5 mm	0.197 in	7	UL94 V-0	6 mm	Copper Beryllium	Plug for Unshrouded Header	300 V	14 AWG	22 AWG	1	1.5 mm˛	Free Hanging (In-Line)	10 A	0.4 Nm	3.5 Lb-In	-30 ░C	105 ░C	Interlocking (Side)	7
On Shore Technology Inc. ED130/6DS	Polyamide (PA) Nylon	Blue	90 °	M2.6	Screw	0.425 in	10.8 mm	5 mm	0.197 in	6	UL94 V-0	6 mm	Copper Beryllium	Plug for Unshrouded Header	300 V	14 AWG	22 AWG	1	1.5 mm˛	Free Hanging (In-Line)	10 A	0.4 Nm	3.5 Lb-In	-30 ░C	105 ░C	Interlocking (Side)	6
On Shore Technology Inc. ED130/12DS	Polyamide (PA) Nylon	Blue	90 °	M2.6	Screw	0.425 in	10.8 mm	5 mm	0.197 in	12	UL94 V-0	6 mm	Copper Beryllium	Plug for Unshrouded Header	300 V	14 AWG	22 AWG	1		Free Hanging (In-Line)	10 A	0.4 Nm	3.5 Lb-In	-30 ░C	105 ░C	Interlocking (Side)	12	1.5 mm²
On Shore Technology Inc. ED130/2DS	Polyamide (PA) Nylon	Blue	90 °	M2.6	Screw	0.425 in	10.8 mm	5 mm	0.197 in	2	UL94 V-0	6 mm	Copper Beryllium	Plug for Unshrouded Header	300 V	14 AWG	22 AWG	1	1.5 mm˛	Free Hanging (In-Line)	10 A	0.4 Nm	3.5 Lb-In	-30 ░C	105 ░C	Interlocking (Side)	2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 4.05

Description

General part information

ED130 Series

12 Position Terminal Block Plug for Unshrouded Header 0.197" (5.00mm) 90° Free Hanging (In-Line)
