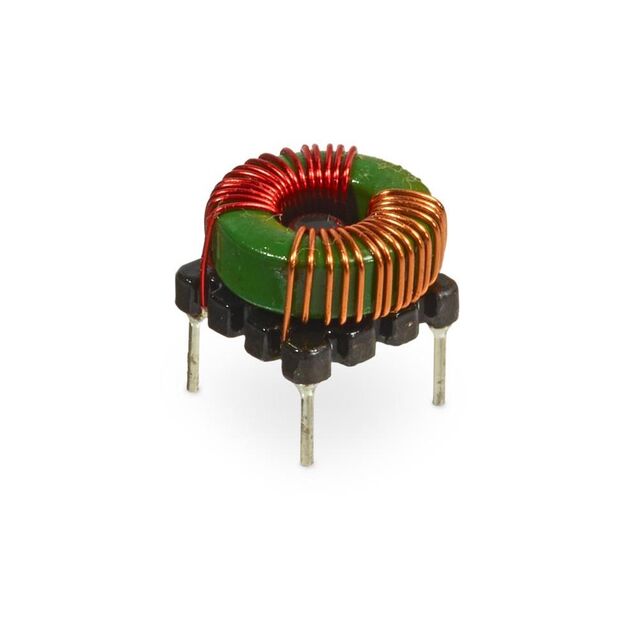

TCK-026

Active

Traco Power

COMMON MODE CHOKES / FILTERS 373UH 36MOHM 3A COMMON MODE CHOKE

Search across all available documentation for this part.

Active

Traco Power

COMMON MODE CHOKES / FILTERS 373UH 36MOHM 3A COMMON MODE CHOKE

Technical Specifications

Parameters and characteristics for this part

Common Mode Chokes / Filters 398uH 9mOhm 10.05A Common Mode Choke

Part	Voltage Rating - DC	Operating Temperature [Min]	Operating Temperature [Max]	Number of Lines	Mounting Type	Inductance @ Frequency	Current Rating (Max) [Max]	Package / Case	Package / Case	DC Resistance (DCR) (Max) [Max]	Height (Max) [Max] [z]	Height (Max) [Max] [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Tolerance	Inductance	Inductance Frequency - Test	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Current Rating (Amps)	Shielding	Height - Seated (Max) [Max]	Height - Seated (Max)	DC Resistance (DCR)	Type	DC Resistance (DCR) [Max]
Traco Power TCK-026	500 V	-40 °C	105 ░C	2	Through Hole	373 µH	3 A	Horizontal	4 Lead	36 mOhm	8.8 mm	0.346 in	11.5 mm	11.5 mm	0.453 "	0.453 in
Traco Power TCK-159		-55 °C	125 °C		Surface Mount			Nonstandard					4 mm	4 mm	0.157 "	0.157 in	20 %	1 µH	100 kHz	2.1 mm	0.083 "	5 A	Unshielded
Traco Power TCK-156		-40 °C	125 °C		Surface Mount			Nonstandard					5.8 mm	5.2 mm	0.228 in	0.205 "	20 %	22 µH				1.1 A	Unshielded	0.199 "	5.05 mm	180 mOhm	Wirewound
Traco Power TCK-078		-40 °C	125 °C		Surface Mount			Nonstandard					5.8 mm	5.2 mm	0.228 in	0.205 "	20 %	1.1 µH	100 kHz			3.24 A	Unshielded	0.199 "	5.05 mm			15 mOhm
