R1812-110-24-R

Active

OptiFuse

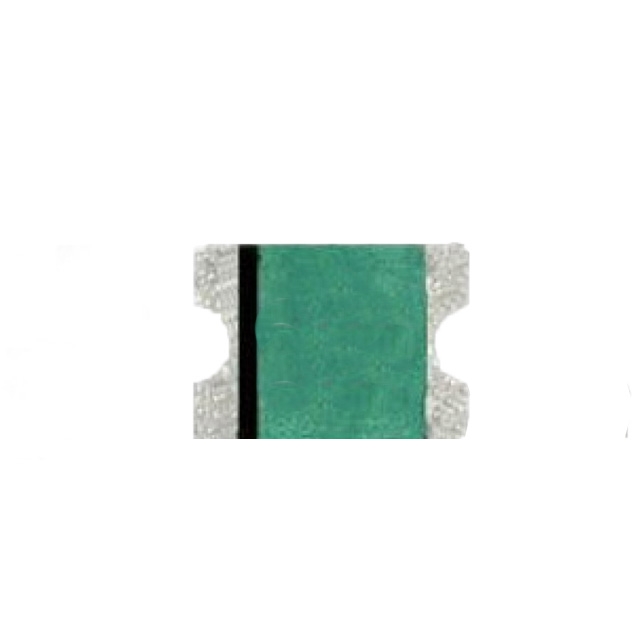

PTC RESET FUSE 24V 1.1A 1812

Search across all available documentation for this part.

Active

OptiFuse

PTC RESET FUSE 24V 1.1A 1812

Technical Specifications

Parameters and characteristics for this part

Specification	R1812-110-24-R

Approval Agency	cULus, TUV
Current - Hold (Ih) (Max) [Max]	1.1 A
Current - Max [Max]	100 A
Current - Trip (It)	2.2 A
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	1812, Concave
Package / Case	4532 Metric
Resistance - Initial (Ri) (Min) [Min]	60 mOhms
Resistance - Post Trip (R1) (Max)	200 mOhms
Size / Dimension [x]	4.55 mm
Size / Dimension [x]	0.179 in
Size / Dimension [y]	3.24 mm
Size / Dimension [y]	0.128 in
Thickness (Max) [Max]	0.051 in
Thickness (Max) [Max]	1.3 mm
Time to Trip	500 ms
Type	Polymeric
Voltage - Max [Max]	24 V

Part	Mounting Type	Type	Resistance - Post Trip (R1) (Max)	Voltage - Max [Max]	Current - Max [Max]	Package / Case	Package / Case	Time to Trip	Operating Temperature [Max]	Operating Temperature [Min]	Current - Hold (Ih) (Max) [Max]	Thickness (Max) [Max]	Thickness (Max) [Max]	Resistance - Initial (Ri) (Min) [Min]	Current - Trip (It)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Approval Agency
OptiFuse R1812-110-24-R	Surface Mount	Polymeric	200 mOhms	24 V	100 A	1812 Concave	4532 Metric	500 ms	85 °C	-40 °C	1.1 A	0.051 in	1.3 mm	60 mOhms	2.2 A	4.55 mm	3.24 mm	0.179 in	0.128 in	cULus TUV

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1500	$ 0.46

General part information

Polymeric PTC Resettable Fuse 24V 1.1 A Ih Surface Mount 1812 (4532 Metric), Concave
