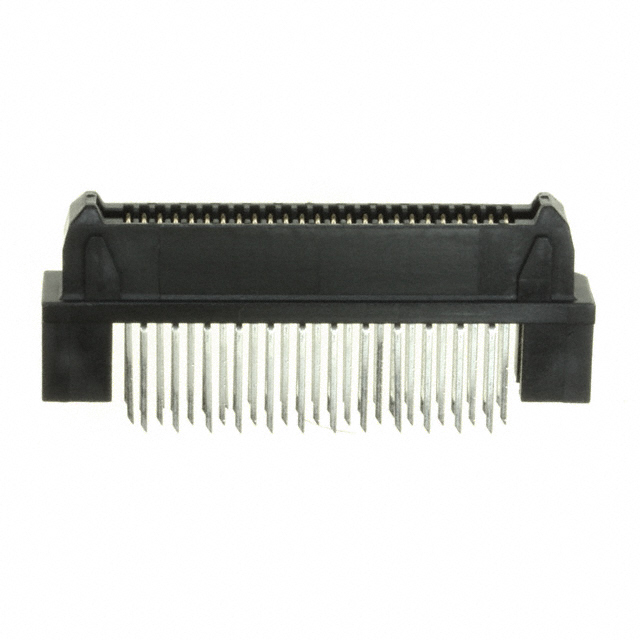

TX24-50R-12ST-N1E

Active

JAE Electronics

CONN RCPT 50POS VERT GOLD

Search across all available documentation for this part.

Active

JAE Electronics

CONN RCPT 50POS VERT GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	TX24-50R-12ST-N1E

Connector Type	Receptacle, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	4 Áin
Contact Finish Thickness	0.1 Ám
Height Above Board	16.3 mm
Height Above Board	0.642 in
Mated Stacking Heights	18 mm, 24 mm, 20 mm
Mounting Type	Through Hole
Number of Positions	50
Number of Rows	2
Pitch [x]	0.05 in
Pitch [x]	1.27 mm

Part	Number of Rows	Height Above Board	Height Above Board	Contact Finish	Number of Positions	Mated Stacking Heights	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Pitch [x]	Pitch [x]	Connector Type
JAE Electronics TX24-50R-10ST-N1E	2	0.563 in	14.3 mm	Gold	50	16 mm 18 mm 22 mm	4 Áin	0.1 Ám	Through Hole	0.05 in	1.27 mm	Receptacle Outer Shroud Contacts
JAE Electronics TX24-50R-6ST-H1E	2	0.406 in	10.3 mm	Gold	50	12 mm 14 mm 18 mm	4 Áin	0.1 Ám	Through Hole	0.05 in	1.27 mm	Receptacle Outer Shroud Contacts
JAE Electronics TX24-50R-12ST-N1E	2	0.642 in	16.3 mm	Gold	50	18 mm 20 mm 24 mm	4 Áin	0.1 Ám	Through Hole	0.05 in	1.27 mm	Receptacle Outer Shroud Contacts
JAE Electronics TX24-50R-6ST-N1E	2	0.406 in	10.3 mm	Gold	50	12 mm 14 mm 18 mm	4 Áin	0.1 Ám	Through Hole	0.05 in	1.27 mm	Receptacle Outer Shroud Contacts
JAE Electronics TX24-50R-LT-H1E	2	0.354 in	9 mm	Gold	50		4 Áin	0.1 Ám	Through Hole Right Angle	0.05 in	1.27 mm	Receptacle Outer Shroud Contacts

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	400	$ 1.50

General part information

50 Position Connector Receptacle, Outer Shroud Contacts Through Hole Gold
