UMTW-5316-7A500-SMD-TT-SN-00
ActiveSCHURTER Inc.

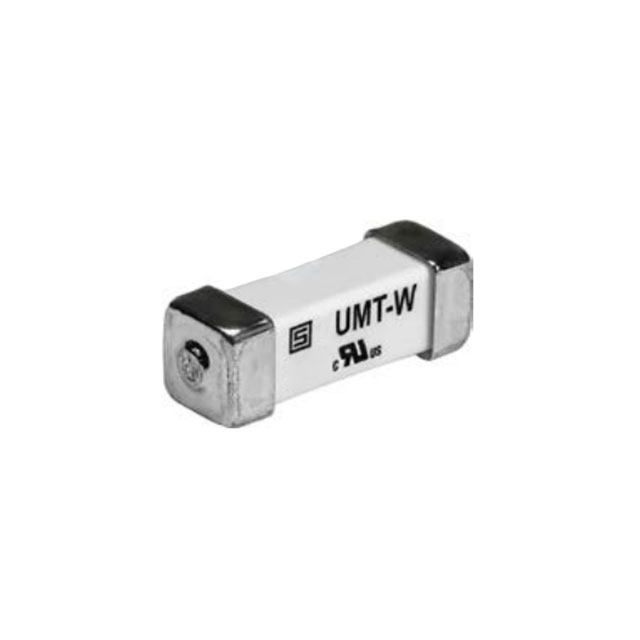

FUSE BRD MNT 7A 125VAC/VDC 2SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
UMTW-5316-7A500-SMD-TT-SN-00
ActiveSCHURTER Inc.
FUSE BRD MNT 7A 125VAC/VDC 2SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | UMTW-5316-7A500-SMD-TT-SN-00 |
|---|---|
| Approval Agency | cURus, CE, UL2481-14, IEC |
| Breaking Capacity @ Rated Voltage | 350 A |
| Current Rating (Amps) | 7 A |
| Fuse Type | Board Mount |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 2-SMD, Square End Block |
| Response Time | Slow Blow |
| Size / Dimension [x] | 0.606 " |
| Size / Dimension [x] | 15.4 mm |
| Size / Dimension [y] | 5.35 mm |
| Size / Dimension [y] | 0.211 " |
| Size / Dimension [z] | 0.211 in |
| Size / Dimension [z] | 5.35 mm |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 125 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | - | 1 | $ 4.35 | |
| Cut Tape (CT) | 1 | $ 6.95 | ||
| 5 | $ 6.71 | |||
| 10 | $ 6.47 | |||
| 50 | $ 5.03 | |||
| 100 | $ 4.19 | |||
| 250 | $ 4.07 | |||
| 500 | $ 3.47 | |||
| Digi-Reel® | 1 | $ 6.95 | ||
| 5 | $ 6.71 | |||
| 10 | $ 6.47 | |||
| 50 | $ 5.03 | |||
| 100 | $ 4.19 | |||
| 250 | $ 4.07 | |||
| 500 | $ 3.47 | |||
| Tape & Reel (TR) | 1500 | $ 2.80 | ||
Description
General part information
UMTW-5316 Series
7 A 125 V AC 125 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 2-SMD, Square End Block
