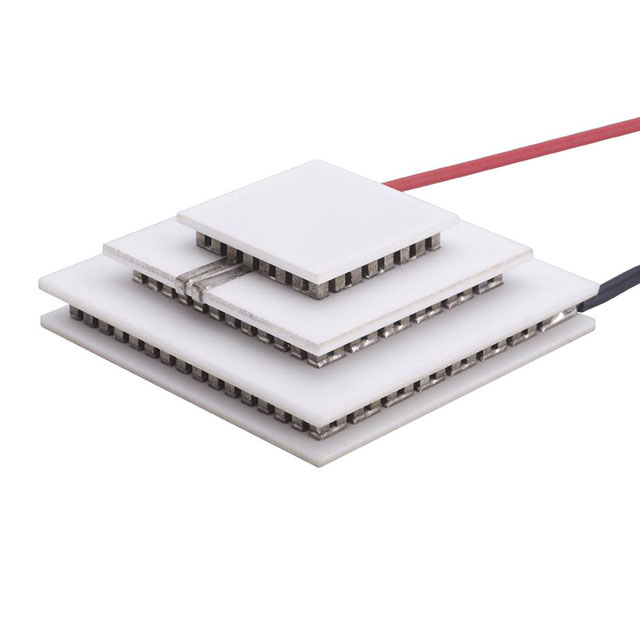

9340004-308

Active

Laird Thermal Systems, Inc.

MS3,231,10,15,22,RT,W8

Search across all available documentation for this part.

Active

Laird Thermal Systems, Inc.

MS3,231,10,15,22,RT,W8

Technical Specifications

Parameters and characteristics for this part

Specification	9340004-308

Current - Max [Max]	1.9 A
Delta Tmax @ Th	104 °C
Features	Sealed - Silicone RTV, Lead Wires
Height [z]	9.7 mm
Number of Stages	3
Operating Temperature	80 °C
Qmax @ Th	6.9 W
Size / Dimension [x]	30 mm
Size / Dimension [y]	30 mm
Voltage - Max [Max]	15.5 V

Part	Operating Temperature	Features	Delta Tmax @ Th	Size / Dimension [x]	Size / Dimension [y]	Height [z]	Number of Stages	Voltage - Max [Max]	Qmax @ Th	Current - Max [Max]
Laird Thermal Systems, Inc. 9340004-301	80 °C	Lead Wires Non-Sealed	104 °C	30 mm	30 mm	9.5 mm	3	15.5 V	6.9 W	1.9 A
Laird Thermal Systems, Inc. 9340004-309	80 °C	Lead Wires Sealed - Epoxy	25 °C 100 °C	30 mm	30 mm	10.59 mm	3	8.1 V	7.5 W	3.9 A
Laird Thermal Systems, Inc. 9340004-308	80 °C	Lead Wires Sealed - Silicone RTV	104 °C	30 mm	30 mm	9.7 mm	3	15.5 V	6.9 W	1.9 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Peltier Module 6.9W @ 25°C 1.9 A 80°C
