TFA9894DUK/N2Z

Obsolete

Freescale Semiconductor - NXP

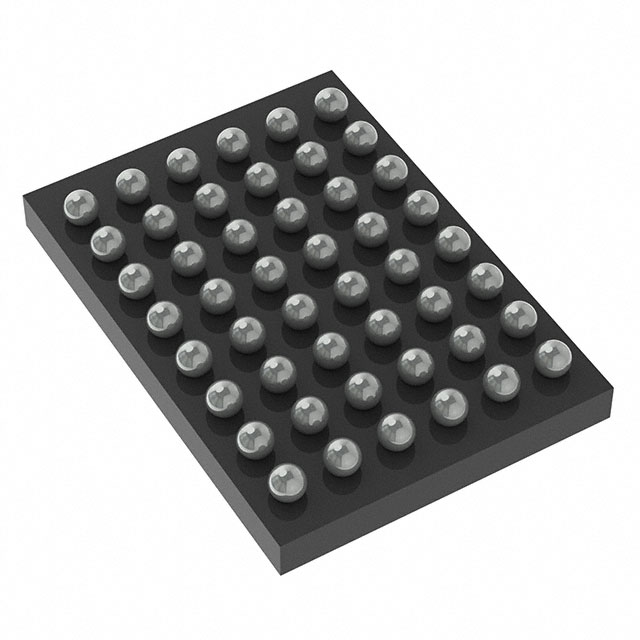

IC AMP CLSS D MONO 9.5MW 48WLCSP

Search across all available documentation for this part.

Obsolete

Freescale Semiconductor - NXP

IC AMP CLSS D MONO 9.5MW 48WLCSP

Technical Specifications

Parameters and characteristics for this part

Specification	TFA9894DUK/N2Z

Max Output Power x Channels @ Load	4 Ohm, 1, 5.6 W, 6 Ohm, 9.5 W, 8 Ohm, 7 W
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Type	1-Channel (Mono)
Package / Case	WLCSP, 48-UFBGA
Supplier Device Package	48-WLCSP (2.51x3.55)
Type	Class D
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	2.7 V

Part	Package / Case	Max Output Power x Channels @ Load	Output Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Type
Freescale Semiconductor - NXP TFA9894AUK/N2Z
Freescale Semiconductor - NXP TFA9894DUK/N2Z	48-UFBGA WLCSP	1 4 Ohm 5.6 W 6 Ohm 7 W 8 Ohm 9.5 W	1-Channel (Mono)	2.7 V	5.5 V	48-WLCSP (2.51x3.55)	85 °C	-40 °C	Surface Mount	Class D
Freescale Semiconductor - NXP TFA9894AUK/N1Z
Freescale Semiconductor - NXP TFA9894UK/N1AZ
Freescale Semiconductor - NXP TFA9894UK/N2Z

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Amplifier IC 1-Channel (Mono) Class D 48-WLCSP (2.51x3.55)
