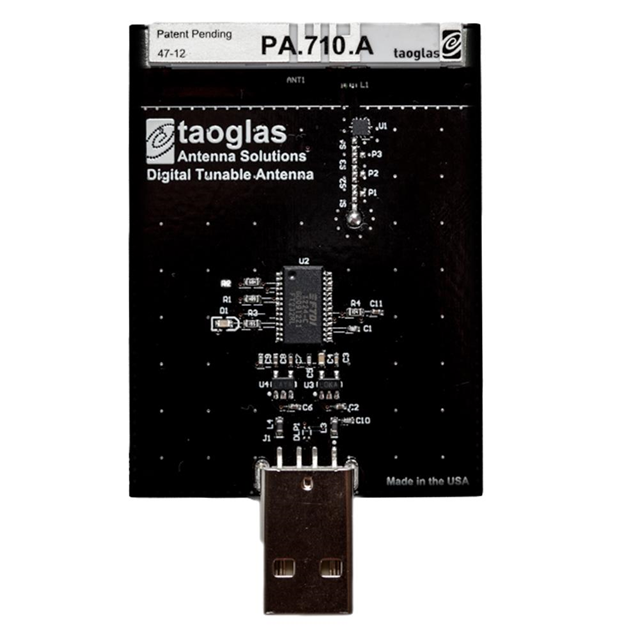

DTAD.01.A.50
ActiveTAOGLAS
RF ANT 829MHZ/2.2GHZ PCB TRACE
Deep-Dive with AI
Search across all available documentation for this part.
DTAD.01.A.50
ActiveTAOGLAS
RF ANT 829MHZ/2.2GHZ PCB TRACE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DTAD.01.A.50 |
|---|---|
| Antenna Type | PCB Trace |
| Applications | LTE |
| Frequency (Center/Band) | 2.2 GHz, 829 MHz |
| Frequency Group | Wide Band |
| Frequency Range [Max] | 960 MHz, 2.7 GHz |
| Frequency Range [Min] | 698 MHz, 1.71 GHz |
| Gain | 2.5 dBi |
| Height (Max) [Max] | 5 mm |
| Height (Max) [Max] | 0.197 in |
| Mounting Type | Adhesive |
| Number of Bands | 2 |
| RF Family/Standard | Cellular |
| Termination | SMA Female |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 95.62 | |
Description
General part information
DTAD.01 Series
RF ANTENNA LTE PCB Trace SMA Female Adhesive
Documents
Technical documentation and resources
No documents available
