WD-100S4V-VF-N-PE-T45

Obsolete

JAE Electronics

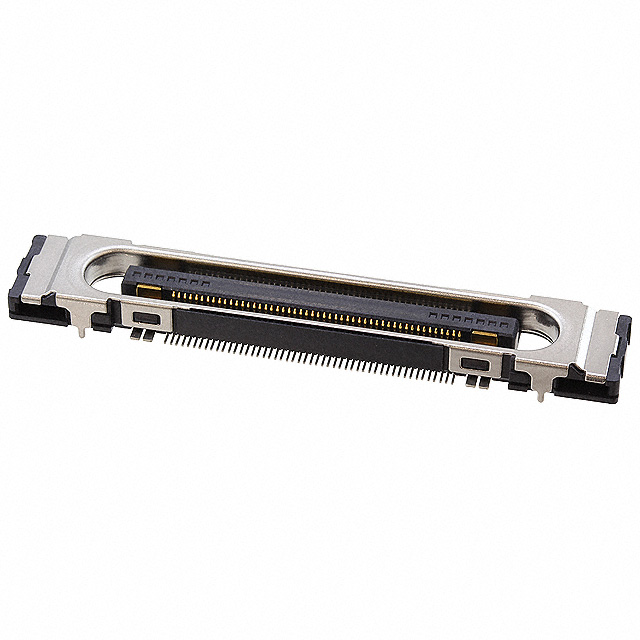

CONN RCPT 104POS SMD GOLD

Search across all available documentation for this part.

Obsolete

JAE Electronics

CONN RCPT 104POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	WD-100S4V-VF-N-PE-T45

Connector Type	Receptacle, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	4 Áin
Contact Finish Thickness	0.1 Ám
Features	Mounting Flange
Height Above Board	3.6 mm
Height Above Board	0.142 in
Mated Stacking Heights	12 mm
Mounting Type	Surface Mount
Number of Positions	104
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

Part	Number of Rows	Mounting Type	Height Above Board	Height Above Board	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Number of Positions	Pitch [x]	Pitch [x]	Contact Finish	Mated Stacking Heights	Features
JAE Electronics WD-100S4V-VF-N-PE-T45	2	Surface Mount	3.6 mm	0.142 in	4 Áin	0.1 Ám	Center Strip Contacts Receptacle	104	0.5 mm	0.02 in	Gold	12 mm	Mounting Flange

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

104 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
