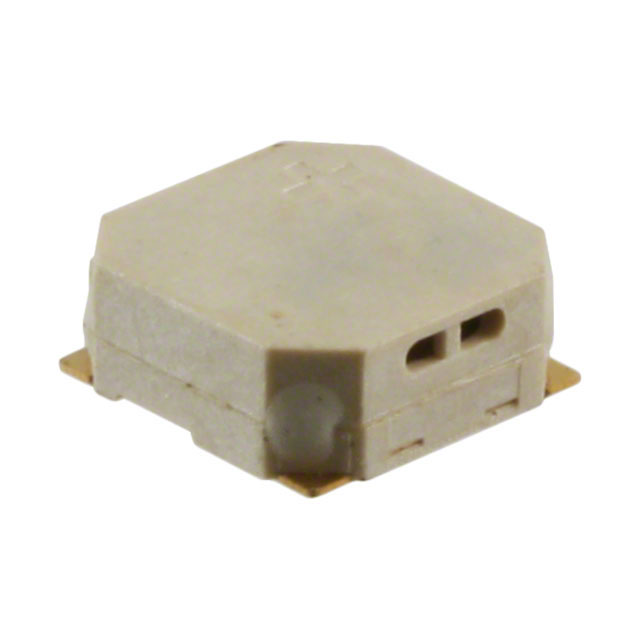

CSS-J4D20-SMT-TR
ActiveCUI Devices
AUDIO BUZZER MAGNETIC 3VO-P 5VO-P 80MA 3.6VO-P 90DBA SURFACE MOUNT SOLDER PAD T/R
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CSS-J4D20-SMT-TR |
|---|---|
| Current - Supply | 80 mA |
| Driver Circuitry | Externally Driven, Transducer |
| Frequency | 3.1 kHz |
| Height - Seated (Max) [Max] | 0.146 in |
| Height - Seated (Max) [Max] | 3.7 mm |
| Input Type | Zero-Peak Signal |
| Mounting Type | Surface Mount |
| Operating Mode | Single Tone |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Port Location | Side |
| Size / Dimension [x] | 0.335 " |
| Size / Dimension [x] | 8.5 mm |
| Size / Dimension [y] | 8.5 mm |
| Size / Dimension [y] | 0.335 in |
| Sound Pressure Level (SPL) | 90 dB |
| Technology | Magnetic |
| Termination | Solder Pads |
| Voltage - Rated | 3.6 VDC |
| Voltage Range [Max] | 5 VDC |
| Voltage Range [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.67 | |
| 10 | $ 1.38 | |||
| 25 | $ 1.28 | |||
| 50 | $ 1.27 | |||
| Digi-Reel® | 1 | $ 1.67 | ||
| 10 | $ 1.38 | |||
| 25 | $ 1.28 | |||
| 50 | $ 1.27 | |||
| Tape & Reel (TR) | 1000 | $ 1.27 | ||
Description
General part information
CSS-J4D20 Series
Buzzers Transducer, Externally Driven Magnetic 3.6 V 80mA 3.1kHz 90dB @ 3.6V, 5cm Surface Mount Solder Pads
